Ruby & Sapphire Balls

0 Products

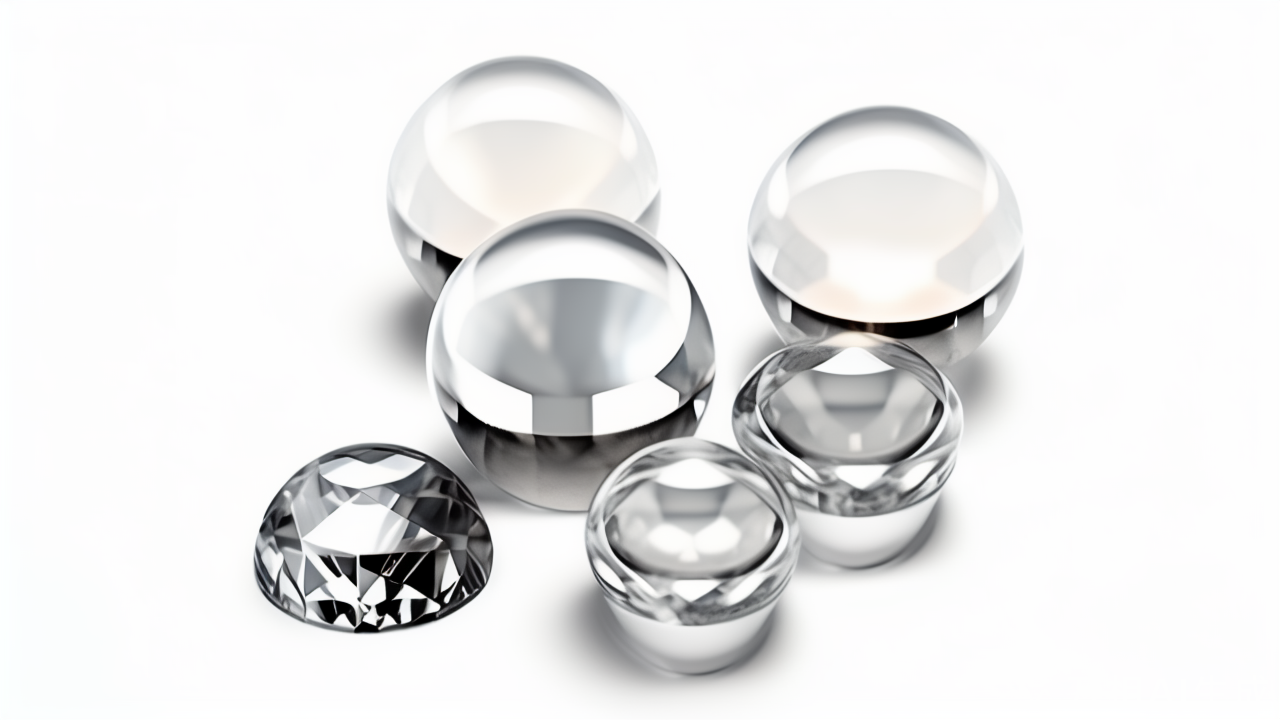

As an anisotropic single-crystal material, sapphire balls feature a hexagonal crystal structure and are composed of monocrystalline alpha aluminum oxide, providing exceptional structural stability. Their near-100% purity gives them outstanding mechanical and optical properties, making them suitable for demanding and high-precision industrial environments.

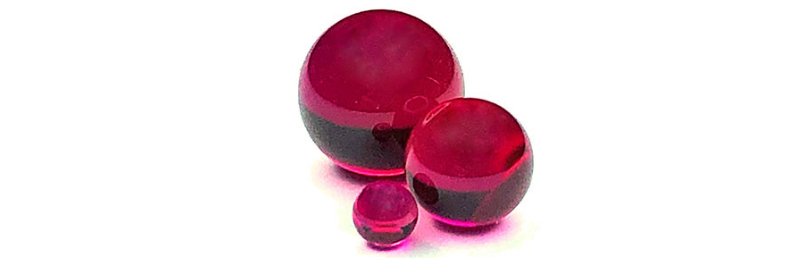

Red Ruby Balls

Red ruby balls are manufactured through precision machining processes and contain trace amounts of chromium, giving them a distinctive and vivid red color. This bright coloration not only enhances visibility but also makes them easier to identify and handle during assembly, inspection, and operation.

What Are Ruby & Sapphire Balls？

Ruby and sapphire balls are precision-engineered components made from synthetic corundum (crystalline aluminum oxide), prized for their extreme hardness, chemical inertness, and dimensional stability. Because they resist wear, corrosion, and high temperatures far better than metal or glass balls, they are widely used in precision bearings, valves, flow meters, check valves, pen tips, spectrometers, and other applications demanding tight tolerances and long service life.

What Are Ruby and Sapphire Balls Used For?

They're used in applications requiring extreme hardness, wear resistance, and dimensional precision — such as precision ball bearings, check valves and flow control valves, flow meters, pen tips, gauges, spectrometers, and other high-precision instruments where metal balls would wear too quickly or react chemically with the media involved.

What's the Difference Between Ruby Balls and Sapphire Balls?

Ruby and sapphire are both forms of crystalline corundum (aluminum oxide) and share nearly identical mechanical properties — the difference is primarily color, caused by trace element impurities. Ruby gets its red color from chromium, while sapphire (typically clear or in other colors) results from other trace elements or none at all. Functionally, the two perform almost identically in most industrial applications.

Why Choose Ruby/Sapphire Balls Over Metal or Glass Balls?

Ruby and sapphire balls offer significantly higher hardness (approaching that of diamond on the Mohs scale), excellent resistance to wear and abrasion, strong chemical inertness (resistant to acids, alkalis, and most solvents), high-temperature stability, and non-magnetic, non-conductive properties — making them suitable for corrosive, high-precision, or electrically sensitive environments where metal balls fall short.

What Sizes and Tolerances Are Available?

Ruby and sapphire balls are typically available in a wide range of diameters, from sub-millimeter sizes up to larger industrial sizes, with tight roundness and diameter tolerances suited to precision instrumentation and valve sealing applications. Exact size ranges and tolerance grades depend on the specific application.

Are Ruby and Sapphire Balls Magnetic or Electrically Conductive?

No. Both materials are non-magnetic and electrically insulating, making them well-suited for applications in electronics, magnetic sensors, and environments where metallic interference must be avoided.

Can Ruby and Sapphire Balls be Customized?

Yes. Custom options typically include diameter, tolerance grade (roundness, surface finish), and surface polish level to meet the specific requirements of bearings, valves, or instrumentation applications.

What Information Is Needed to Order Custom Ruby/Sapphire Balls?

To place a custom order, typically provide:
Material preference (ruby or sapphire)
Ball diameter and tolerance requirements
Quantity needed
Surface finish/polish requirements
Intended application (bearing, valve, instrumentation, etc.), which can help determine the appropriate grade
