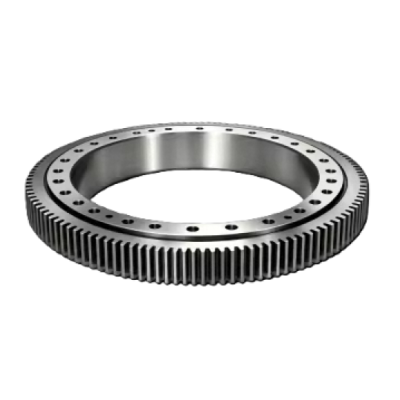

RKS.425062621001 Slewing Ring Bearings
LILY Interchangeable From SKF
Price Not yet
| SKF Part No. | RKS.425062621001 |
| LILY Part No. | LRKS.425062621001 |
| Series | Customized Crossed Cylindrical |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1080 mm |
| Outside Diameter Of Outer Ring | 1475.5 mm |
| External Diameter On Outer Ring (Dr) | 1415 mm |
| Internal Diameter On Outer Ring (Di) | 1252.5 mm |
| External Diameter On Inner Ring (do) | 1085 mm |
| Internal Diameter On Inner Ring (dr) | 1247.5 mm |
| Height Of Overall Bearing Assembly (H) | 110 mm |
| Weight | 480 Kg |
| Pitch Diameter Of Gear (D2) | 1428 mm |
| Number Of Gear Teeth (z2) | 102 |
| Basic Dynamic Load Rating Axial (Ca) | 1220 N |
| Basic Static Load Rating Axial (C0a) | 5220 N |
| dm | 1250 mm |
| H1 | 60.5 mm |
| Outer Ring (D1) | 1415 mm |
| Outer Ring (D2) | 1252.5 mm |
| Outer Ring (C) | 89 mm |
| Outer Ring (C1) | 75 mm |
| Inner Ring (d1) | 1247.5 mm |
| Inner Ring (d2) | 1085 mm |
| Inner Ring (B) | 100 mm |
| Inner Ring (B1) | 10 mm |
| Je | 1350 mm |
| Ke | 27 mm |
| Ne | 48 |
| Ji | 1150 mm |
| Ki | 27 mm |
| Ni | 48 |
| Tooth Modules | 14 |
| x·m | 13.3 |
| k·m | 3.55 |
| Permissible Tooth Forces T (fnormal) | 125 |
| Permissible Tooth Forces T (fMAX) | 229 |
| Raceway Curves | r11 |
| Bolt Curves | b11 |
