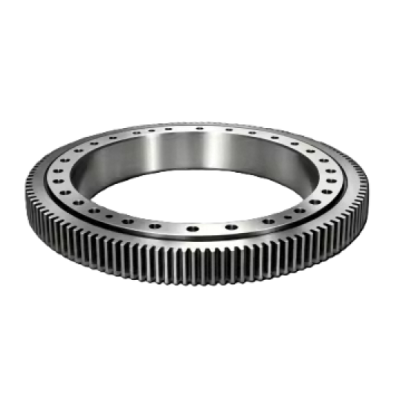

RKS.425060101001 Slewing Ring Bearings

LILY Interchangeable From SKF
RKS.425060101001 Slewing Ring Bearings
Price Not yet
SKF Part No. RKS.425060101001
LILY Part No. LRKS.425060101001
Series Customized Crossed Cylindrical
Gear Internal gear
Type Roller
System of Measurement Metric
Inside Diameter Of Inner Ring 1080 mm
Outside Diameter Of Outer Ring 1475.5 mm
External Diameter On Outer Ring (Dr) 1415 mm
Internal Diameter On Outer Ring (Di) 1252.5 mm
External Diameter On Inner Ring (do) 1085 mm
Internal Diameter On Inner Ring (dr) 1247.5 mm
Height Of Overall Bearing Assembly (H) 110 mm
Weight 490 Kg
Pitch Diameter Of Gear (D2) 1440 mm
Number Of Gear Teeth (z2) 144
Basic Dynamic Load Rating Axial (Ca) 1220 N
Basic Static Load Rating Axial (C0a) 5220 N
dm 1250 mm
H1 60.5 mm
Outer Ring (D1) 1415 mm
Outer Ring (D2) 1252.5 mm
Outer Ring (C) 89 mm
Outer Ring (C1) 75 mm
Inner Ring (d1) 1247.5 mm
Inner Ring (d2) 1085 mm
Inner Ring (B) 100 mm
Inner Ring (B1) 10 mm
Je 1350 mm
Ke 27 mm
Ne 24
Ji 1150 mm
Ki 27 mm
Ni 28
Tooth Modules 10
x·m 8.6
k·m 0.85
Permissible Tooth Forces T (fnormal) 92
Permissible Tooth Forces T (fMAX) 169
Raceway Curves r11
Bolt Curves b11
