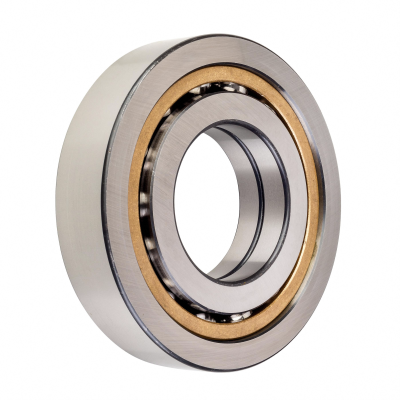

QJ 315 N2PHAS
Part Number | QJ 315 N2PHAS |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Metric |
Bearing Type | Ball |
Internal Design | High Speed |
For Load Direction | Four Point Contact |
Construction | Single Row |
Seal Type | Open |
Bore Dia | 75 mm |
Bore Dia Tolerance | -0.012mm to 0 |
Outer Dia | 160 mm |
Outer Dia Tolerance | -0.018mm to 0 |
Width | 37 mm |
Width Tolerance | -0.05mm to 0 |
Shoulder Diameter Inner Ring (Large Side Face)(d1) | 104 mm |
Shoulder Diameter Outer Ring (Large Side Face)(D1) | 131 mm |
Chamfer Dimension (r1 2)(min) | 2.1 mm |
Distance Pressure Point (a) | 82 mm |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | PEEK Cage |
Dynamic Radial Load | 48600 lbf |
Static Radial Load | 45000 lbf |
Max Speed (X1000 rpm) | 7.5 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
ABEC Rating | P6 (ABEC-3) |
ROHS | Compliant |
REACH | Compliant |
Weight | 3.9 kg |
Design Features of QJ 315 N2PHAS Bearing
QJ 315 N2PHAS Bearing is characterized by a unique design where a single row of balls engages with four points of contact on the raceways (two inner and two outer points). This configuration forms an angular contact that allows the bearing to support axial loads from both directions. QJ 315 N2PHAS bore dia is 75 mm. Its out dia is 160 mm. QJ 315 N2PHAS width is 37 mm. It provides a balance of load handling, space utilization, and performance.
What Benefits Can QJ 315 N2PHAS Bearing Provide?
- Axial Load Handling: Capable of supporting significant axial loads in both directions, ideal for applications requiring bidirectional axial load support.
- Compact Design: Combines the functionality of double-row bearings in a more compact form, saving space in assembly.
- Radial Load Capacity: Efficiently handles radial loads, providing versatility in various mechanical setups.
- Precision and Stability: Offers high precision and stability in operation, essential for applications requiring accurate rotational movement.
- Space Efficiency: Ideal for applications with limited space, delivering robust performance without the need for larger bearing arrangements.
What Can QJ 315 N2PHAS Bearing Be Used for?
QJ 315 N2PHAS Bearing is utilized in applications that demand robust axial and radial load support within a compact design. Key uses include:
- Turntables and Indexing Tables: For precise and stable rotation under combined loads.
- Steering Systems: In automotive and marine applications for efficient steering control.
- Industrial Machinery: In gearboxes and drives where space efficiency and load capacity are crucial.
- Cranes and Hoists: Providing reliable performance under heavy loads in lifting equipment.
- Rotary Tables: In machine tools for precise positioning and movement.
