GAC 110 F
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GAC 110 F |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Angular Contact |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 110 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 170 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Nominal Width | 38 mm |
| Nominal Width Tolerance | -0.6mm to +0.25mm |
| Width Inner Ring | 38 mm |
| Width Inner Ring Tolerance | -0.4mm to 0 |
| Width Outer Ring | 34 mm |
| Width Outer Ring Tolerance | -0.5mm to 0 |
| Angle Of Tilt | 3 ° |
| Raceway Diameter Inner Ring | 155 mm |
| Chamfer Dimension Bore | min.2.5 mm |
| Chamfer Dimension Outer Ring | min.0.6 mm |
| Distance Sphere Diameter Centre-Large Inner Ring Side Face | 13 mm |
| Dynamic Radial Load | 49500 lbf |
| Static Radial Load | 77625 lbf |
| Material | Steel/Ptfe Frp |
| Specific Dynamic Load Factor | 50 N/mm² |
| Specific Static Load Factor | 80 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -40° to 75° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.7 kg |
Design Features of GAC 110 F Bearing

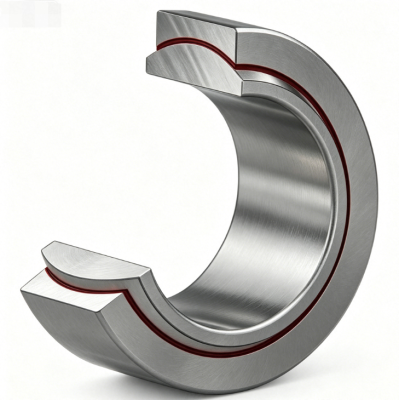

GAC 110 F Bearing consists of an inner ring with a spherical convex outside surface and an outer ring with a corresponding concave inside surface. This design allows to accommodate angular misalignment. GAC 110 F bore dia is 110 mm. Its out dia is 170 mm. GAC 110 F nominal width is 38 mm. The bearing is ideal for load capacity, self-alignment, and durability.
What Benefits Can GAC 110 F Bearing Provide?
- High Load Capacity: It can handle both side and end loads, making it suitable for heavy-duty uses.
- Self-Alignment: The spherical design allows for self-alignment, helping to correct misalignment between the shaft and housing and reducing stress on the bearing.
- Durability: It is made from high-strength, wear-resistant materials.
- Reduced Maintenance: Required grooves or holes make maintenance easier, reducing downtime and operational costs.
- Versatility: It is Suitable for a wide range of applications, including those with dynamic loads and misalignments.
What Can GAC 110 F Bearing Be Used for?
- Construction Machinery: For joints and pivots in heavy equipment.
- Agricultural Equipment: In machinery that requires durable and self-aligning bearings.
- Automotive Industry: In suspension systems and steering linkages.
- Mining Equipment: For robust performance in harsh environments.
