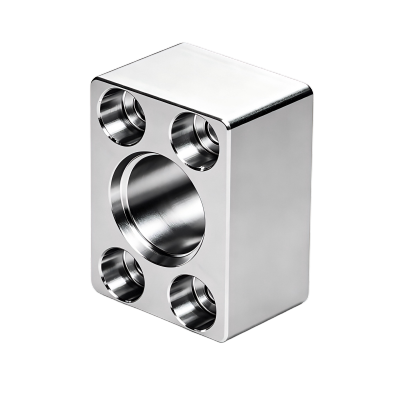

2125N38
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CBCFNDI |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Flange Code | 61 |
| Fabrication | Machined |
| Connection Type | Pipe |
| Connection Style | Socket Connect × Flanged |
| Socket Connect Type | Weld |
| Socket Depth | 0.5" |
| Gender | Female |
| Pipe Size | 3/4 |
| SAE Flange Size | 3/4 |
| Dash Size | 12 |
| Flanged Connection Surface | O-Ring Groove |
| Maximum Pressure | 3,000 psi @ 72° F |
| Material | Steel |
| O-Ring Material | Buna-N Rubber |
| Flange Height | 0.312500" |
| Flange Width | 1.75" |
| Flange Depth | 1" |
| Mounting Hardware Included | Yes |
| For Bolt Thread Type | Inch |
| For Bolt Diameter | 0.375000" |
| Bolt Hole Diameter | 0.41" |
| Bolt Hole Number of | 4 |
| Bolt Hole Center -to-Center | 7/8", 1 7/8" |
| Specifications Met | ISO 6162, SAE J518 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Hydraulic Fluid |
