High-Pressure Steel Unthreaded SAE Pipe Flanges

16 Products

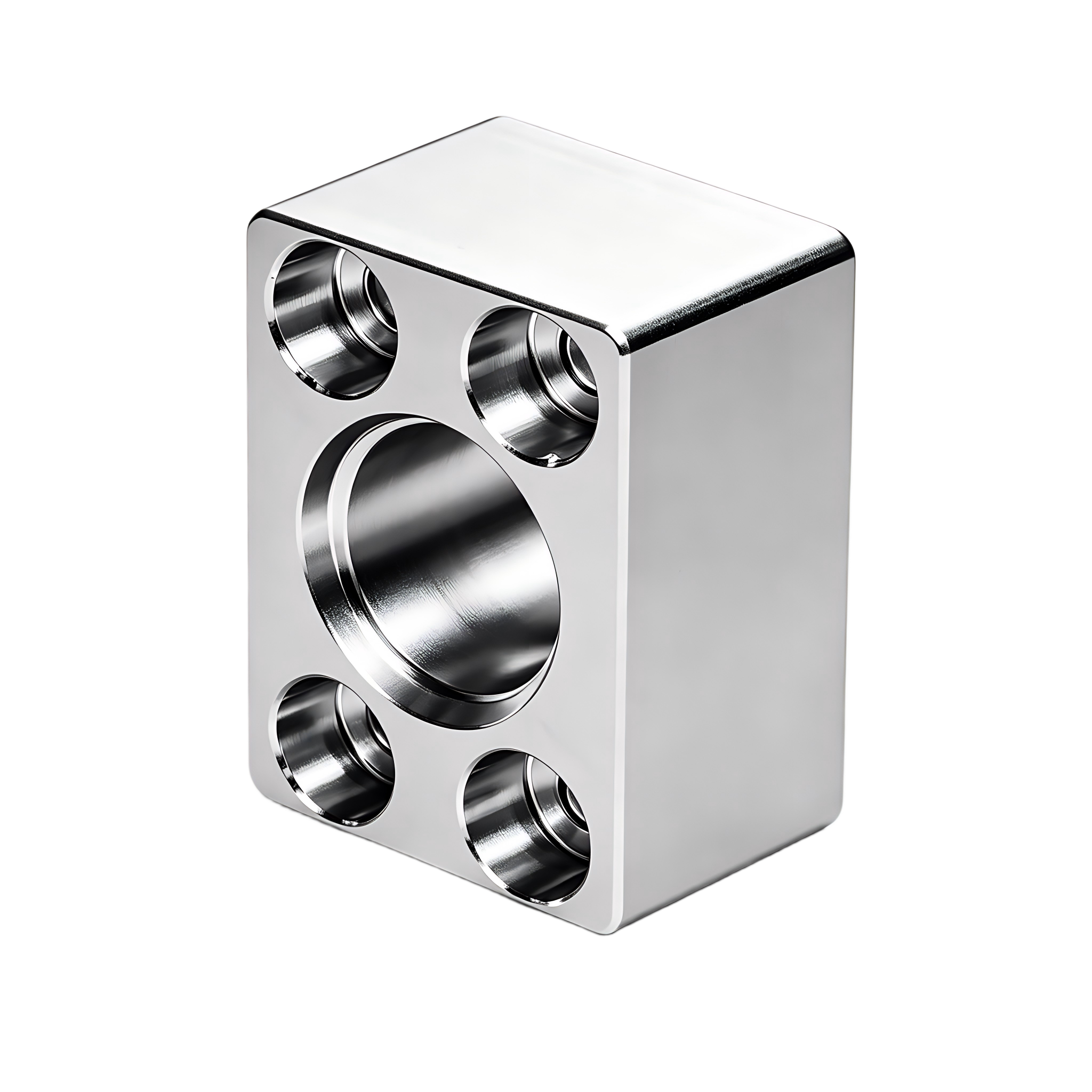

High-Pressure Steel Unthreaded SAE Pipe Flanges High-Pressure Steel Unthreaded SAE Pipe Flanges
Part Number
Pipe Size
Dash Size
SAE Flange Size
Flange Height
Flange Width
Flange Depth
Flanged Connection Surface
Mounting Hardware Included
For Bolt Thread Type
For Bolt Diameter
Bolt Hole Diameter
Bolt Hole Number of
Bolt Hole Center -to-Center
Maximum Pressure
Material
Price
>
Part Number
Pipe Size
Dash Size
SAE Flange Size
Flange Height
Flange Width
Flange Depth
Flanged Connection Surface
Mounting Hardware Included
For Bolt Thread Type
For Bolt Diameter
Bolt Hole Diameter
Bolt Hole Number of
Bolt Hole Center -to-Center
Maximum Pressure
Material
Price
>
CBCFNDF
1
16
1
0.414063"
2"
1"
Flat
No
Inch
0.375000"
0.41"
4
1.031", 2.062"
3,000 psi @ 72° F
Steel
$22.36
CBCFNDJ
1
16
1
0.414063"
2"
1"
O-Ring Groove
Yes
Inch
0.375000"
0.41"
4
1.031", 2.062"
3,000 psi @ 72° F
Steel
$29.24
CBCFNEE
1 1/2
24
1 1/2
95 mm
70 mm
32 mm
O-Ring Groove
Yes
Metric
12 mm
13 mm
4
36mm, 70mm
3,000 psi @ 72° F
Steel
$44.16
CBCFNDG
1 1/2
24
1 1/2
0.25"
2.75"
1.25"
Flat
No
Inch
0.438000"
0.47"
4
1.406", 2 3/4"
3,000 psi @ 72° F
Steel
$35.48
CBCFNE
1 1/2
24
1 1/2
0.25"
2.75"
1.25"
O-Ring Groove
Yes
Inch
0.438000"
0.47"
4
1.406", 2 3/4"
3,000 psi @ 72° F
Steel
$35.79
CBCFNEB
2
32
2
4"
3.25"
1.5"
O-Ring Groove
Yes
Inch
0.5"
0.53"
4
1.688", 3.062"
3,000 psi @ 72° F
Steel
$41.22
CBCFNDH
2
32
2
4"
3.25"
1.5"
Flat
No
Inch
0.5"
0.53"
4
1.688", 3.062"
3,000 psi @ 72° F
Steel
$36.00
CBCFNEF
2
32
2
102 mm
83 mm
38 mm
O-Ring Groove
Yes
Metric
12 mm
13 mm
4
43mm, 78mm
3,000 psi @ 72° F
Steel
$52.48
CBCFNDE
3/4
12
3/4
0.312500"
1.75"
1"
Flat
No
Inch
0.375000"
0.41"
4
7/8", 1 7/8"
3,000 psi @ 72° F
Steel
$22.37
CBCFNDI
3/4
12
3/4
0.312500"
1.75"
1"
O-Ring Groove
Yes
Inch
0.375000"
0.41"
4
7/8", 1 7/8"
3,000 psi @ 72° F
Steel
$29.00
CBCFNEI
-
24
1 1/2
0.25"
2.75"
1.25"
Flat
No
Inch
0.438000"
0.47"
4
1.406", 2 3/4"
3,000 psi @ 72° F
Steel
$34.53
CBCFNF
-
12
3/4
0.312500"
1.75"
1"
O-Ring Groove
Yes
Inch
0.375000"
0.41"
4
7/8", 1 7/8"
3,000 psi @ 72° F
Steel
$24.85
CBCFNEH
-
16
1
0.414063"
2"
1"
Flat
No
Inch
0.375000"
0.41"
4
1.031", 2.062"
3,000 psi @ 72° F
Steel
$20.29
CBCFNFB
-
16
1
0.414063"
2"
1"
O-Ring Groove
Yes
Inch
0.375000"
0.41"
4
1.031", 2.062"
3,000 psi @ 72° F
Steel
$28.05
CBCFNFC
-
24
1 1/2
0.25"
2.75"
1.25"
O-Ring Groove
Yes
Inch
0.438000"
0.47"
4
1.406", 2 3/4"
3,000 psi @ 72° F
Steel
$38.89
CBCFNFD
-
32
2
4"
3.25"
1.5"
O-Ring Groove
Yes
Inch
0.5"
0.53"
4
1.688", 3.062"
3,000 psi @ 72° F
Steel
$42.15
