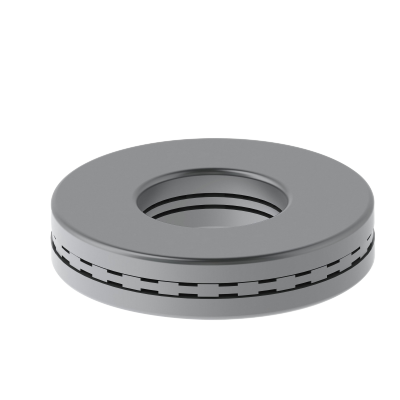

XC2107-902A1
Part Number | XC2107-902A1 |
System of Measurement | Inch |
Type | Bearing |
Bearing Type | Roller |
Roller Bearing Type | Thrust Tapered Roller Bearings - TTHD |
For Load Direction | Thrust |
Configuration | Thrust TTHD - with cage |
Seal Type | Open |
Series | TTHD |
Bore Dia | 6.5" |
Bore Dia Tolerance | +0.001" to 0 |
Outer Dia | 12" |
Outer Dia Tolerance | +0.001" to 0 |
Width | 3" |
Width Tolerance | +0.0150" to -0.0150 |
Fillet Radius Shaft | 0.25" |
Fillet Radius Housing | 0.25" |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Thrust Load | 99300 lbf |
Static Thrust Load | 1200000 lbf |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
Weight | 26.3kg |
