T11000-90010
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | T11000-90010 |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Bearing |
| Seal Type | Open |
| For Load Direction | Thrust |
| Series | TTHD |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Bore Dia | 11" |
| Bore Dia Tolerance | +0.001" to 0 |
| Outer Dia | 23.75" |
| Outer Dia Tolerance | +0.001" to 0 |
| Width | 5.375" |
| Width Tolerance | +0.0150" to -0.0150 |
| Ring Thickness | 1.5" |
| Shoulder Diameter Shaft | 21.4" |
| Shoulder Diameter Housing | 12.35" |
| Fillet Radius Shaft | 0.44" |
| Fillet Radius Housing | 0.06" |
| Inner Dia Housing Washer | 11.125" |
| Outer Dia Shaft Washer | 23.689" |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Thrust Load | 469000 lbf |
| Static Thrust Load | 7240000 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 202.6 kg |

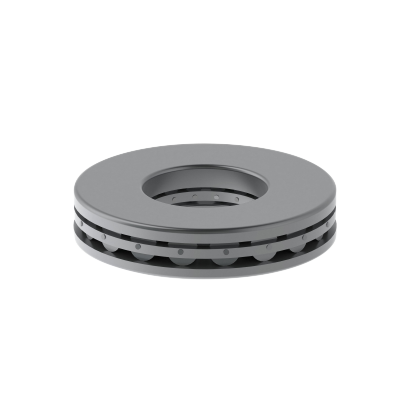

Design Features of T11000-90010 Bearing
T11000-90010 features a flat design that allows for easy installation and alignment. T11000-90010 outer dia is 23.75". Its bore dia is 11". Its robust construction ensures durability and effective load handling in various applications.
What Benefits Can T11000-90010 Bearing Provide?
- Easy Installation: Its flat design simplifies installation and alignment, saving time during setup.
- Durability: Built with high-quality materials, it provides long-lasting performance even under heavy loads.
- Effective Load Handling: Designed to manage both radial and axial loads efficiently, enhancing overall machinery performance.
- Versatility: Suitable for a wide range of applications, making it a flexible choice for different industries.
- Reduced Maintenance: Its robust construction and efficient design minimize wear, leading to lower maintenance needs.
What Can T11000-90010 Bearing Be Used for?
- Industrial Machinery: Ideal for conveyors, pumps, and fans where load handling and durability are essential.
- Automotive Applications: Used in vehicle components that require reliable performance under varying loads.
- Agricultural Equipment: Suitable for machinery like tractors and harvesters, providing stability and support.
- Construction Equipment: Found in heavy machinery, ensuring smooth operation in demanding environments.
- Robotics: Utilized in robotic systems that require precision and reliable motion.
