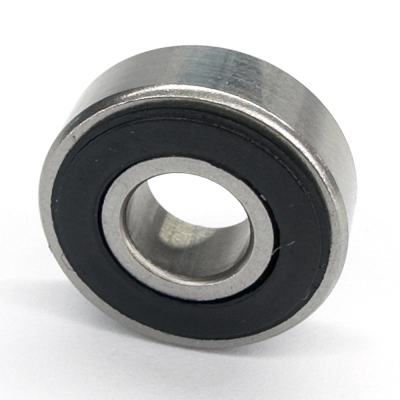

SMR93 2rs
SMR93 2rs
$1.38
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | SMR93 2rs |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Sealed |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 6 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia | 3 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 9 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 4 mm |
| Width Tolerance | -0.12mm to 0 |
| Ball Dia | 1.588 mm |
| Radial Clearance | 0.005mm to 0.01 mm |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Shield Material | Nitrile Rubber |
Performance |
|
| Dynamic Radial Load | 98 lbf |
| Static Radial Load | 31 lbf |
| Max Speed (X1000 rpm) | 50.4 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.75 g |
