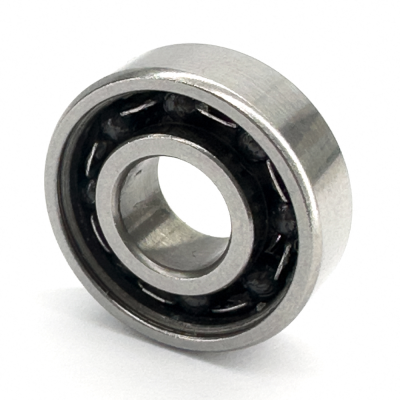

SMR52

SMR52 Metric Standard
Price $ 2.34
Number
Part Number SMR52
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Open
Bore Dia 2 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 5 mm
Outer Dia Tolerance -0.008mm to 0
Width 2 mm
Width Tolerance -0.12mm to 0
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Dynamic Radial Load 29 lbf
Static Radial Load 8 lbf
Max Speed (X1000 rpm) 76.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC1
Radial Clearance Trade No MC3
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 0.8000 mm
Ball Qty 6
Weight 0.14 g
INTERCHANGE
The LILY Bearing part series SMR52 is a potential replacement for these common bearing part numbers.
LILY
NMB
DYNAROLL
EZO
NHBB
LSMR52
DDL-520W02
SMR52
SMR52
SSL-520W02

Design Features of SMR52 Bearing

Designed to deliver reliable and efficient performance in tight spaces, SMR52 Bearing is an excellent choice for industrial applications with limited space. SMR52 bore dia is 2 mm. Its out dia is 5 mm. SMR52 ball material is Stainless Steel. Its seal type is Open. With high-speed capabilities, low friction, and reduced noise levels, this bearing provides optimal performance. It meets industry standards for precision and durability, making it suitable for various applications in different industries requiring compact-space solutions.



Applications of SMR52 Bearing

SMR52 Bearing is used across a wide range of industries that demand high precision and compact design, including but not limited to cryogenic coolers, pulmonary assist devices, clocks, and instrumentation. It is also utilized in fuel controls, surveillance systems, and gyros. Due to its small size and dependable performance, this bearing is a popular choice for applications where space is limited but precision is crucial.



Maintenance and Troubleshooting Tips of SMR52 Bearing

Regular maintenance is crucial to ensure SMR52 Bearing function at their best and last long. It's recommended to frequently inspect the bearing for any signs of contamination, wear, or damage. A non-corrosive solvent can be used to clean it, followed by thorough drying before lubrication. If there is any indication of excessive wear or damage, replace the bearing right away. Additionally, make sure to troubleshoot any issues with the application to ensure the bearing is being used within its intended parameters.
