S7002 ACE/HCP4A

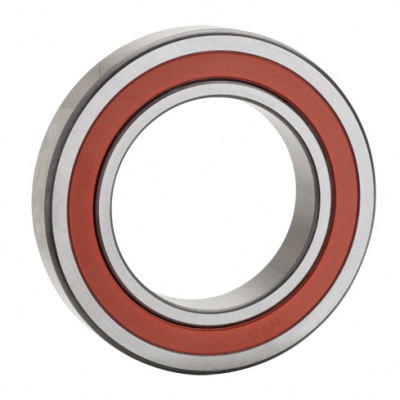

S7002 ACE/HCP4A Sealed Type With Ceramic Balls (Super Precision)
S7002 ACE/HCP4A Sealed Type With Ceramic Balls (Super Precision)
Price $ 92.41
Number
Part Number S7002 ACE/HCP4A
Equivalent to Manufacturer SKF
System of Measurement Metric
Bearing Type Ball
Internal Design High Speed
Contact Angle 25°
Lubrication Hole NO
For Load Direction Combined Radial and Thrust
Construction Single Row
Seal Type Sealed
Bore Dia 15 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.006mm to 0
Width 9 mm
Width Tolerance -0.2mm to 0
Shoulder Diameter Inner Ring (Large Side Face)(d1) 20.65 mm
Shoulder Diameter Inner Ring (Small Side Face)(d2) 19.5 mm
Recess Diameter Outer Ring (Large Side Face)(D2) 28.8 mm
Chamfer Dimension (r1 2)(min) 0.3 mm
Chamfer Dimension (r3 4)(min) 0.15 mm
Distance Pressure Point (a) 10.1 mm
Ring Material 52100 Chrome Steel
Ball Material Ceramic
Cage Material Cotton fabric reinforced phenolic resin
Dynamic Radial Load 4.23 kN
Static Radial Load 1.83 kN
Max Speed (X1000 rpm) 75
Lubrication Lubricated
Temperature Range -30° to 110 °C
ABEC Rating P4 (ABEC-7)
ROHS Compliant
REACH Compliant
Ball Dia 4.762 mm
Ball Qty 12
Weight 0.026 kg
