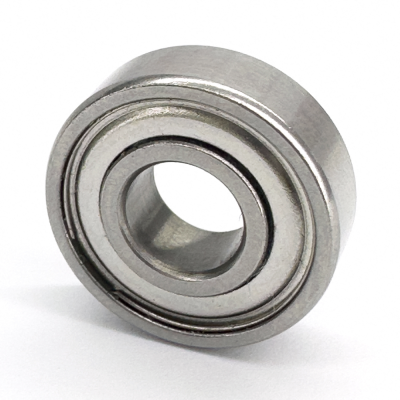

S692xzz
S692xzz
$2.10
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Overview |
|
| Part Number | S692xzz |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Shielded |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 7 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia | 2.5 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 7 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 3.5 mm |
| Width Tolerance | -0.12mm to 0 |
| Ball Dia | 1.2 mm |
| Radial Clearance | 0.005mm to 0.01 mm |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Shield Material | 300 Series Stainless Steel |
Performance |
|
| Dynamic Radial Load | 66 lbf |
| Static Radial Load | 21 lbf |
| Max Speed (X1000 rpm) | 56.7 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.55 g |
INTERCHANGE
The LILY Bearing part series S692xzz is a potential replacement for these common bearing part numbers.
LILY
LS692xzz
NMB
DDR-725ZZ
DYNAROLL
692XhZZS
EZO
692XhZZS
NHBB
SSR-725ZZ
EZO
692XHZZP6MC3SRL
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
