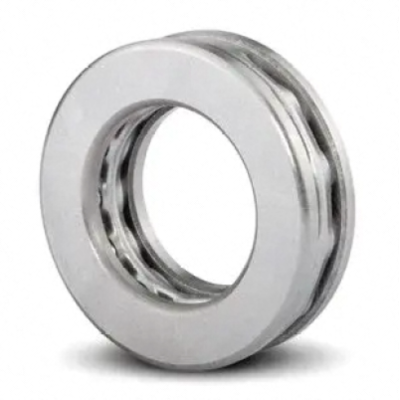

S59192 F
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | S59192 F |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 460 mm |
| Bore Dia Tolerance | -0.045mm to 0 |
| Outer Dia | 560 mm |
| Outer Dia Tolerance | -0.05mm to 0 |
| Height | 60 mm |
| Height Tolerance | +0.05mm to -0.5mm |
| Outer Dia Shaft Washer | 556 mm |
| Inner Dia Housing Washer | 464 mm |
| Chamfer Dimension Washer | 2.1 mm |
| Washer Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Thrust Load | 48963 lbf |
| Static Thrust Load | 309562 lbf |
| Max Speed (X1000 rpm) | 0.86 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 29.5 kg |
S59192 F Single Direction Thrust Ball Bearings are a kind of separation bearings. S59192 F bore dia is 460 mm. Its out dia is 560 mm. S59192 F ball material is 440C Stainless Steel. Its seal type is Open. S59192 F Single Direction Thrust Ball Bearings are designed to bear thrust loads while operating at high speeds.
Typical Applications
Automobiles, Motors, Electrical Appliances, Furniture, Packaging Machinery, Food Chemical Machinery, Fitness Equipment, Construction Machinery, Medical Instruments, Printing Machinery, Machine Tools, Flow Meters, Robotics Industry, Gas Meters, Anemometer, Crane hook, Oil rig, Rolling mill roll neck, etc.
General Selection Factors
Several factors must be considered for choosing Single Direction Thrust Ball Bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, axial loads, and lubricant, etc.
