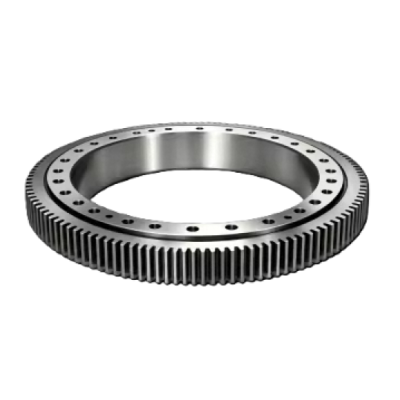

RKS.427020101001 Slewing Ring Bearings

LILY Interchangeable From SKF
RKS.427020101001 Slewing Ring Bearings
Price Not yet
SKF Part No. RKS.427020101001
LILY Part No. LRKS.427020101001
Series Customized Crossed Cylindrical
Gear Internal gear
Type Roller
System of Measurement Metric
Inside Diameter Of Inner Ring 1205 mm
Outside Diameter Of Outer Ring 1604 mm
External Diameter On Outer Ring (Dr) 1551 mm
Internal Diameter On Outer Ring (Di) 1394 mm
External Diameter On Inner Ring (do) 1208 mm
Internal Diameter On Inner Ring (dr) 1387.5 mm
Height Of Overall Bearing Assembly (H) 130 mm
Weight 620 Kg
Pitch Diameter Of Gear (D2) 1570 mm
Number Of Gear Teeth (z2) 157
Basic Dynamic Load Rating Axial (Ca) 1730 N
Basic Static Load Rating Axial (C0a) 6660 N
dm 1390 mm
H1 68.5 mm
Outer Ring (D1) 1551 mm
Outer Ring (D2) 1394 mm
Outer Ring (C) 109 mm
Outer Ring (C1) 75 mm
Inner Ring (d1) 1387.5 mm
Inner Ring (d2) 1208 mm
Inner Ring (B) 116 mm
Inner Ring (B1) 10 mm
Je 1500 mm
Ke 30 mm
Ne 24
Ji 1280 mm
Ki 30 mm
Ni 403)
Tooth Modules 10
x·m 7.5
k·m 0.5
Permissible Tooth Forces T (fnormal) 93
Permissible Tooth Forces T (fMAX) 171
Raceway Curves r12
Bolt Curves b12
RKS.427020101001 Slewing Ring Bearings cad drawing
