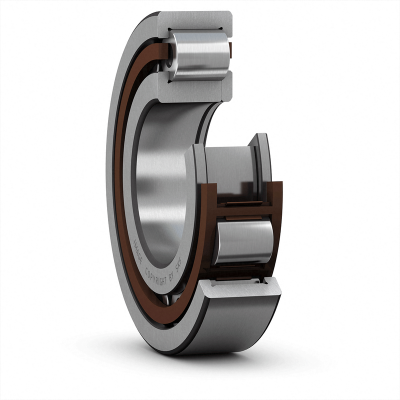

NUP 2208 ECP
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NUP 2208 ECP |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 40 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 80 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 23 mm |
| Width Tolerance | -0.12mm to 0 |
| Shoulder Dia Of Outer Ring | 67.53 mm |
| Shoulder Dia Of Inner Ring | 54 mm |
| Raceway Diameter Of Inner Ring | 49.5 mm |
| Chamfer Dimension r1,2(min.) | 1.1 mm |
| Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) | 1.1 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | PA66 cage, roller centred |
Performance |
|
| Dynamic Radial Load | 18338 lbf |
| Static Radial Load | 16875 lbf |
| Max Speed (X1000 rpm) | 11 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.51 kg |
Design Features of NUP 2208 ECP Bearing
NUP 2208 ECP Bearing features a single row of cylindrical rollers that offer high radial load capacity and low friction for efficient performance. NUP 2208 ECP outer dia is 80 mm. Its bore dia is 40 mm. The inclusion of an inner ring ensures precise alignment, providing stability and smooth rotation under varying load conditions, making it suitable for applications requiring robust and reliable support.
What Benefits Can NUP 2208 ECP Bearing Provide?
- High Load Capacity: The design supports high radial loads, making it ideal for heavy-duty applications.
- Low Friction: Reduced friction enhances efficiency and extends the lifespan of the bearing.
- Compact Design: The single row configuration allows for a more compact bearing, saving space in machinery.
- Improved Stability: The inner ring ensures precise alignment, providing smooth and stable operation.
- Durability: The bearing is built for long-lasting performance under demanding conditions.
- Versatility: Suitable for a wide range of applications, from industrial machinery to automotive systems.
What Can NUP 2208 ECP Bearing Be Used for?
- Industrial Machinery: Used in heavy-duty machines like pumps, compressors, and gearboxes to handle high radial loads.
- Automotive Industry: Found in engines, transmissions, and wheel hubs, providing reliable support under varying load conditions.
- Single Row Equipment: Used in machinery such as cranes and excavators, which require bearings that can handle high loads and rough conditions.
- Mining Equipment: Essential for equipment like conveyors and crushers, where high load-bearing capacity is needed.
- Electric Motors: Provides stable support for the rotor, reducing friction and improving efficiency.
- Agricultural Equipment: Used in machines like tractors and harvesters to ensure smooth operation under tough conditions.
