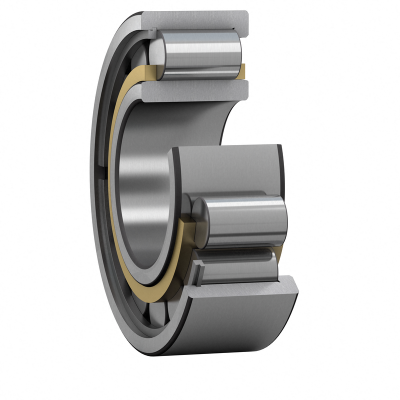

NUH 2238 ECMH
| Part Number | NUH 2238 ECMH |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 190 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 340 mm |
| Outer Dia Tolerance | -0.04mm to 0 |
| Width | 92 mm |
| Width Tolerance | -0.30mm to 0 |
| Shoulder Diameter Outer Ring | 295.2 mm |
| Raceway Diameter Inner Ring | 228 mm |
| Chamfer Dimension r1,2(min.) | 4 mm |
| Permissible Axial Displacement(max.) | 3.1 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Machined brass cage, inner ring raceway centred |
| Dynamic Radial Load | 297000 lbf |
| Static Radial Load | 396000 lbf |
| Max Speed (X1000 rpm) | 2 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 36 kg |
