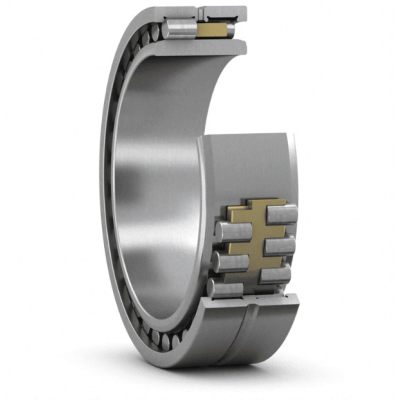

NNU 4152 M/W33
| Part Number | NNU 4152 M/W33 |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 260 mm |
| Outer Dia | 440 mm |
| Chamfer Dimension Outer Ring(r1,2)(min.) | 4 mm |
| Chamfer Dimension Inner Ring(r3,4)(min.) | 4 mm |
| Permissible Axial Displacement(max.) | 5.1 mm |
| Dynamic Radial Load | 495000 lbf |
| Static Radial Load | 877500 lbf |
| Max Speed (X1000 rpm) | 2 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
