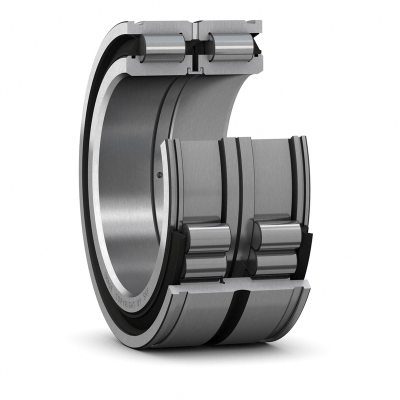

NNF 5024 B-2LS
| Part Number | NNF 5024 B-2LS |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 120 mm |
| Outer Dia | 180 mm |
| Width | 80 mm |
| Chamfer Dimension r3,4(min.) | 0.6 mm |
| Dynamic Radial Load | 96525 lbf |
| Static Radial Load | 168750 lbf |
| Max Speed (X1000 rpm) | 1 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
