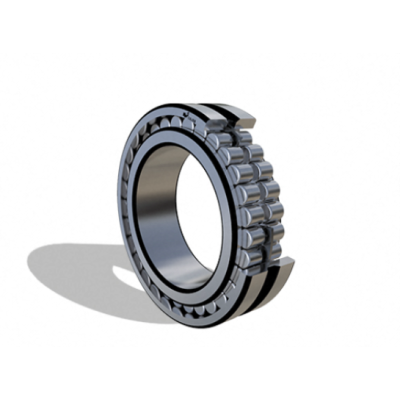

NNCL 4834 CV
| Part Number | NNCL 4834 CV |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 170 mm |
| Outer Dia | 215 mm |
| Width | 45 mm |
| Chamfer Dimension (Open Bearings)(r1,2)(min.) | 1.1 mm |
| Permissible Axial Displacement(max.) | 3 mm |
| Dynamic Radial Load | 64350 lbf |
| Static Radial Load | 147375 lbf |
| Max Speed (X1000 rpm) | 2 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
