NNCF 5068 CV
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NNCF 5068 CV |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Double Row Full Complement |
Dimensions |
|
| Bore Dia | 340 mm |
| Bore Dia Tolerance | -0.04mm to 0 |
| Outer Dia | 520 mm |
| Outer Dia Tolerance | -0.05mm to 0 |
| Width | 243 mm |
| Width Tolerance | -0.40mm to 0 |
| Shoulder Dia Of Inner Ring | 395 mm |
| Permissible Axial Displacement(max.) | 11 mm |
| Raceway Diameter Of Outer Ring(E) | 468 mm |
| Chamfer Dimension r1,2(min.) | 5 mm |
| Chamfer Dimension r3,4(min.) | 5 mm |
| Diameter Lubrication Hole (Outer Ring) (K) | 5 mm |
Material |
|
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Full complement (no cage) |
Performance |
|
| Dynamic Radial Load | 990000 lbf |
| Static Radial Load | 1867500 lbf |
| Max Speed (X1000 rpm) | 1 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |

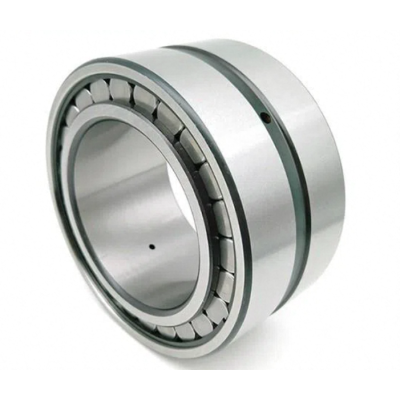

Design Features of NNCF 5068 CV Bearing
NNCF 5068 CV Bearing features two rows of cylindrical rollers without a cage, allowing for a maximum number of rollers and significantly enhancing its load-carrying capacity. NNCF 5068 CV outer dia is 520 mm. Its bore dia is 340 mm. This design provides high stability and durability, making it suitable for applications that require robust performance under heavy radial loads.
What Benefits Can NNCF 5068 CV Bearing Provide?
- High Load Capacity: With two rows of rollers, it supports greater radial loads, making it ideal for heavy-duty applications.
- Compact Design: The absence of cages allows for a more compact bearing, suitable for space-constrained environments.
- Enhanced Durability: The increased contact area between the rollers and raceways improves wear resistance and extends the bearing's service life.
- Cost-Effective Solution: Its simple design and high load capacity can reduce the need for multiple bearings, making it an economical choice.
- Reliable Performance in Harsh Conditions: It performs well in environments with heavy shock loads and vibrations, ensuring reliability in demanding industrial applications.
What Can NNCF 5068 CV Bearing Be Used for?
- Heavy Machinery: Commonly found in construction and mining equipment, where it supports high radial loads and harsh conditions.
- Industrial Gearboxes: Utilized in gearboxes to manage significant loads and ensure efficient power transmission.
- Wind Turbines: Employed in rotor assemblies, where it accommodates heavy loads and varying conditions.
- Steel Mills: Suitable for equipment in steel manufacturing, providing durability and reliability under continuous operation.
- Pulp and Paper Industries: Used in large rollers and presses, offering robust performance in demanding processing environments.
