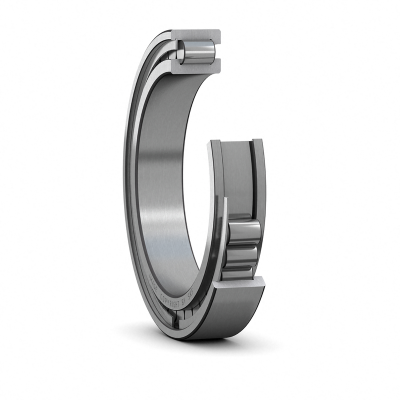

NCF 28/1000 V
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NCF 28/1000 V |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row Full Complement |
Dimensions |
|
| Bore Dia | 1000 mm |
| Bore Dia Tolerance | -0.10mm to 0 |
| Outer Dia | 1220 mm |
| Outer Dia Tolerance | -0.125mm to 0 |
| Width | 128 mm |
| Width Tolerance | -1.00mm to 0 |
| Shoulder Dia Of Outer Ring | 1148 mm |
| Shoulder Dia Of Inner Ring | 1073 mm |
| Permissible Axial Displacement(max.) | 12 mm |
| Raceway Diameter Of Outer Ring(E) | 1165 mm |
| Chamfer Dimension r1,2(min.) | 6 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Full complement of rollers (no cage) |
Performance |
|
| Dynamic Radial Load | 929250 lbf |
| Static Radial Load | 2610000 lbf |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 309 kg |
Design Features of NCF 28/1000 V Bearing
NCF 28/1000 V Bearing is designed with the maximum number of cylindrical rollers that can fit between the inner and outer rings, providing a high load-carrying capacity. NCF 28/1000 V outer dia is 1220 mm. Its bore dia is 1000 mm. Its design eliminates the cage, allowing for greater roller volume, which enhances durability and performance in applications with limited space.
What Benefits Can NCF 28/1000 V Bearing Provide?
- High Load Capacity: Its design allows for a greater number of rollers, significantly increasing the bearing's ability to support heavy radial loads.
- Compact Design: The absence of a cage allows for a more compact design, making it suitable for applications with limited space.
- Enhanced Durability: With more contact area between the rollers and raceways, it provides improved wear resistance and a longer service life.
- Cost-Effective: Generally, this bearing can be more economical due to its simple design and high load capacity, reducing the need for multiple bearings.
- Good Performance in Harsh Conditions: It performs well in environments with heavy shock loads or vibrations, making it suitable for demanding industrial applications.
What Can NCF 28/1000 V Bearing Be Used for?
- Heavy Machinery: Commonly found in construction equipment and mining machinery, where it supports high radial loads.
- Industrial Gearboxes: Used in gearboxes to manage significant loads while maintaining efficiency in power transmission.
- Wind Turbines: Employed in rotor assemblies to handle the heavy loads and variable conditions experienced in wind energy applications.
- Paper and Pulp Mills: Suitable for large rolls and presses, providing durability and reliability under continuous operation.
- Railway Applications: Used in axle boxes and other railway components, where high load capacity and resilience are essential.
