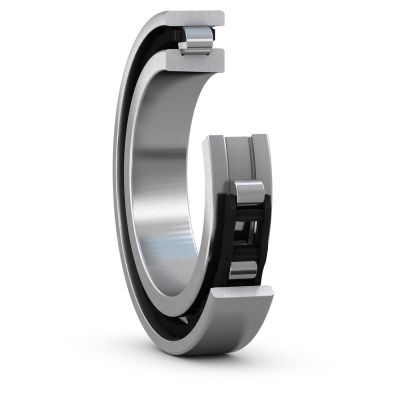

N 1011 KTN/HC5SP
N 1011 KTN/HC5SP
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | N 1011 KTN/HC5SP |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Bore Type | Taper 1:12 |
| For Load Direction | Combined |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 55 mm |
| Bore Dia Tolerance | 0 to +0.015mm |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.010mm to 0 |
| Width | 18 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Dia Of Inner Ring | 68.2 mm |
| Permissible Axial Displacement(max.) | 2.5 mm |
| Raceway Diameter Of Outer Ring(E) | 81 mm |
| Chamfer Dimension Inner Ring(r3,4)(min.) | 0.6 mm |
| Chamfer Dimension Outer Ring(r1,2)(min.) | 1.1 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Si3N4 |
| Cage Material | PA66 cage, roller centred |
Performance |
|
| Dynamic Radial Load | 9045 lbf |
| Static Radial Load | 10800 lbf |
| Max Speed (X1000 rpm) | 15 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.35 kg |
