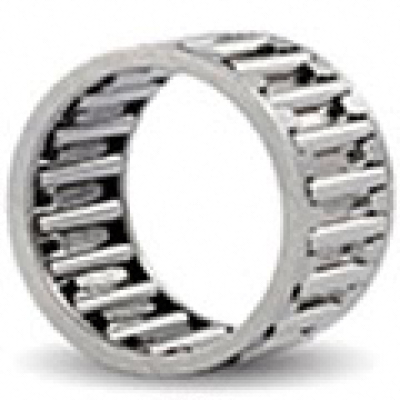

K24X28X13
| Part Number | K24X28X13 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Needle |
| Construction | Single Row |
| Series | K Series |
| Bore Dia | 24 mm |
| Outer Dia | 28 mm |
| Width | 13 mm |
| Cage Material | Steel |
| Needle Material | Steel |
| Dynamic Radial Load | 2475 lbf |
| Static Radial Load | 3960 lbf |
| Max Speed (X1000 rpm) | 18.8 |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight | 10 g |
})
