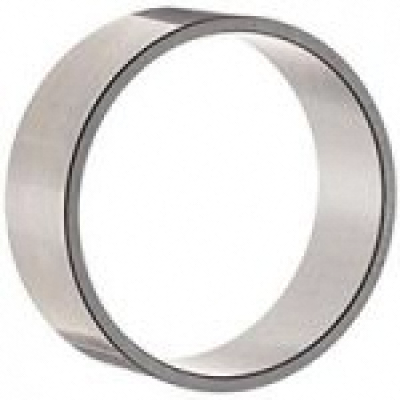

IR280X305X69-XL
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Overview |
|
| Part Number | IR280X305X69-XL |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Series | IR |
Dimensions |
|
| Bore Dia | 280 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Outer Dia | 305 mm |
| Outer Dia Tolerance | -0.107mm to -0.069mm |
| Width | 69 mm |
| Width Tolerance | -0.35mm to 0 |
| Chamfer | 2 mm |
Material |
|
| Material | Chrome Steel |
Properties |
|
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 6100 g |
INTERCHANGE
The LILY Bearing part series IR280X305X69-XL is a potential replacement for these common bearing part numbers.
LILY
LIR280X305X69-XL
INA
IR280X305X69
IKO
LRT 28030569
FAG
JR 280X305X69
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
