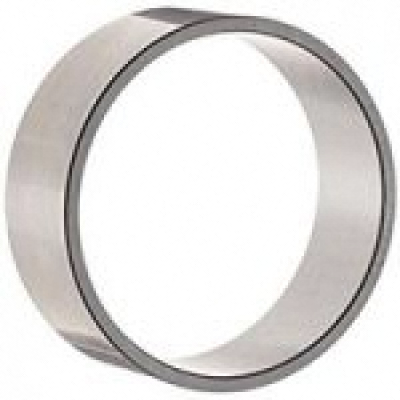

IR260X285X60-XL
| Part Number | IR260X285X60-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Series | IR |
| Bore Dia | 260 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Outer Dia | 285 mm |
| Outer Dia Tolerance | -0.107mm to -0.069mm |
| Width | 60 mm |
| Width Tolerance | -0.35mm to 0 |
| Rmin | 2 mm |
| Material | Bearing Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 4980 g |
})
INTERCHANGE
The LILY bearing part series IR260X285X60-XL is a potential replacement for these common bearing part numbers.
LILY
INA
IKO
FAG
LIR260X285X60-XL
IR260X285X60
LRT 26028560
JR 260X285X60
