GGFHKBGE
| Part Number | GGFHKBGE |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 50 mm |
| Bore Dia | 50.05 mm |
| Bore Dia Tolerance | 0 mm to 0.1 mm |
| For Housing ID | 55mm |
| Outer Dia | 55.03 mm |
| Outer Dia Tolerance | 0 to 0.03 mm |
| Length | 20 mm |
| Length Tolerance | 0mm to 0.33mm |
| Dynamic Radial Load | 32 lbf |
| Static Radial Load | 32 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Material | Acetal Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -50° to 190° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY Bearing part series GGFHKBGE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GGFHKBGE
6657K164

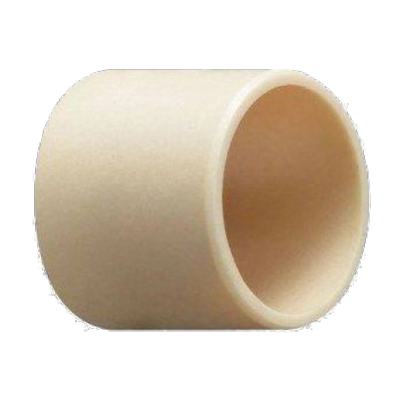

Design Features of GGFHKBGE Bearing
GGFHKBGE Bearing is made from food-grade materials, featuring a self-lubricating design and corrosion resistance. GGFHKBGE bore dia is 50.05 mm. Its outer dia is 55.03 mm. GGFHKBGE length is 20 mm. This bearing can withstand high temperatures, making it ideal for food processing environments.
What Benefits Can GGFHKBGE Bearing Provide?
- Not Required-Free: The bearing does not require external lubrication, reducing the risk of contamination in food products.
- Low Maintenance: Since it does not require lubrication, maintenance is minimal, leading to reduced downtime and maintenance costs.
- Resistance to Corrosion: It is typically made from materials resistant to corrosion, such as stainless steel or advanced polymers, making it suitable for wet and harsh environments.
- High Temperature Tolerance: Certain dry-running bearing can operate effectively in high-temperature environments often found in food processing.
What Can GGFHKBGE Bearing Be Used for?
- Food Transport: The bearing is perfect for conveyor belts moving food. It does not need lubrication and resists corrosion from food and cleaning agents.
- Mixers and Blenders: Great for mixing dry ingredients. It ensures no lubricant contaminates the food.
- High-Temperature Operations: The bearing is ideal for baking ovens and high-heat equipment. It can withstand heat without breaking down.
- Beverage Filling: The bearing can be used in beverage filling machines. It keeps the process clean and free from contamination since no lubricants are needed.
