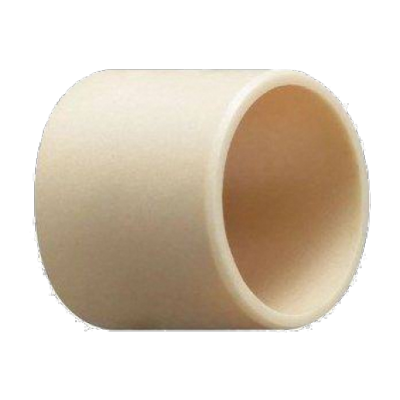

GDIJKHCI
| Part Number | GDIJKHCI |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 8 mm |
| Bore Dia | 8 mm |
| Bore Dia Tolerance | 0 mm to 0.2032 mm |
| For Housing ID | 11mm |
| Outer Dia | 11 mm |
| Outer Dia Tolerance | 0 to 0.1016 mm |
| Length | 12 mm |
| Length Tolerance | -0.127mm to 0.127mm |
| Dynamic Radial Load | 37 lbf |
| Static Radial Load | 37 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | Nylon Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -10° to 220° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY Bearing part series GDIJKHCI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GDIJKHCI
