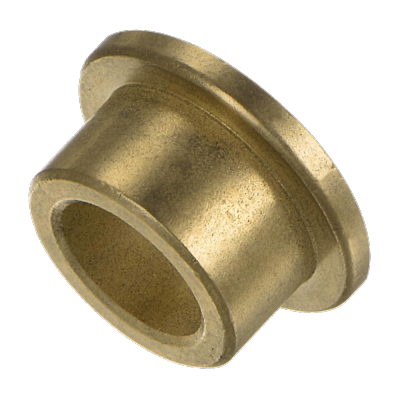

FEEITFID
| Part Number | FEEITFID |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Flanged |
| For Load Direction | Combined Radial and Thrust |
| For Shaft Diameter | 40 mm |
| Bore Dia | 40 mm |
| Bore Dia Tolerance | -0.025 mm to 0.025 mm |
| For Housing ID | 50 mm |
| Outer Dia | 50.05 mm |
| Outer Dia Tolerance | 0 to 0.026 mm |
| Length | 40 mm |
| Length Tolerance | -0.12mm to 0.12mm |
| Flange OD | 60 mm |
| Flange Thickness | 5 mm |
| Dynamic Radial Load | 9900 lbf |
| Static Radial Load | 9900 lbf |
| Dynamic Thrust Load | 9700 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Material | 660 Leaded Bronze |
| Lubrication | Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -350° to 450° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series FEEITFID is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FEEITFID
