F6809ZZ

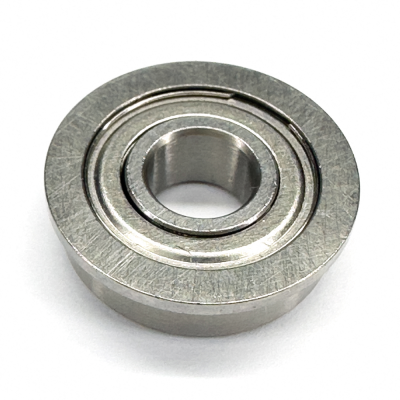

F6809ZZ Standard Flanged Ball Bearings
Price $ 18.00
Number
Part Number F6809ZZ
System of Measurement Metric
Bearing Type Ball
Ball Bearing Type Flanged
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Shielded
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 58 mm
Outer Dia Tolerance -0.013mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 61 mm
Flange Thickness 1.5 mm
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 1391 lbf
Static Radial Load 1210 lbf
Max Speed (X1000 rpm) 11
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110°C
ABEC Rating ABEC-1
Radial Clearance Trade No C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 21
Ball Dia 3.969 mm
Weight 45.3 g

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)

Design Features of F6809ZZ Bearing

F6809ZZ Bearing is designed to effectively handle radial loads, provide precise alignment and facilitate easy mounting in applications where axial positioning is essential. F6809ZZ bore dia is 45 mm. Its out dia is 58 mm. F6809ZZ flange outer dia is 61 mm and its flange thickness is 1.5 mm. Its robust construction and flange design can offer reliable performance and extended service life.



What Benefits Can F6809ZZ Bearing Provide?

  • Precise Axial Positioning: The integrated flange aids in securing the bearing axially, ensuring optimal alignment.
  • Simplified Installation: The flange allows for easier bearing assembly and disassembly, reducing maintenance time.
  • Enhanced Durability: This bearing typically has robust construction for prolonged service life, even in demanding applications.
  • Reduced Friction: Their design aids in lowering friction, promoting energy efficiency.



What Can F6809ZZ Bearing Be Used for?

F6809ZZ Bearing is suitable for a wide range of applications due to their design and load handling capabilities, including:

  • Automotive: used in assemblies like transmissions, steering mechanisms, and wheel hubs
  • Industrial Machinery: such as conveyor systems, electric motors, and various mechanical handling systems
  • Home Appliances: such as washing machines, air conditioners, and refrigerators
  • Aerospace: used in aircraft control systems and satellite equipment
  • Electronics: like hard drives and DVD players
  • Robotics: used in robotic arms and automated machinery
