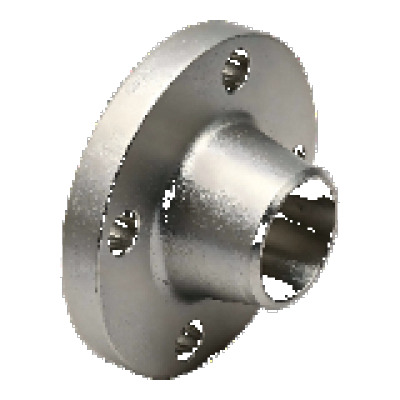

44685K212
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | EEGIFKCBC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Material | 304/304L Stainless Steel |
| Pressure Class | 150 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Butt Weld × Flanged |
| Flanged Connection Surface | Raised |
| Pipe Size | 3/4 |
| Wall Thickness | 0.113000" |
| Certification | Material Certificate with Traceable Lot Number and Test Report |
| Construction | Seamless |
| Flange OD | 3.875000" |
| For Fitting Schedule | 40 |
| For Fitting Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | 304 Stainless Steel, 304/304L Stainless Steel |
| For Bolt Diameter | 0.5" |
| Bolt Hole Diameter | 0.625000" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 2.75" |
| Maximum Pressure | 230 psi @ 72° F |
| Specifications Met | ASME B16.5, ASTM A182 |
| Weight | 1.825000 lbs |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Water |
