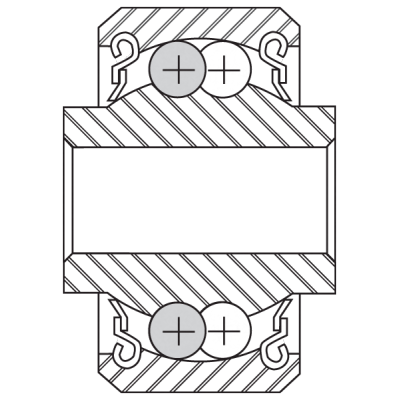

DSP10
$392.50
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | DSP10 |
| Standard Reference | MS27643-10 |
| System of Measurement | Inch |
| Bore Dia | 0.625" |
| Bore Dia Tolerance | -0.0010" to 0" |
| Outer Dia | 1.9375" |
| Outer Dia Tolerance | -0.0010" to 0" |
| Ring Width Outer Height | 0.937" |
| Ring Width Outer Height Tolerance | -0.005" to 0" |
| Ring Width Inner Width | 1.125" |
| Ring Width Inner Width Tolerance | -0.005" to 0" |
| Ball Complement No | 30 |
| Ball Complement Dia | 0.2813" |
| Ring Shoulder Outer | 1.59" |
| Ring Shoulder Inner | 0.872" |
| Ring Chamfer Outer | 0.044" |
| Ring Chamfer Outer Tolerance | 0" to 0.015" |
| Ring Chamfer Inner | 0.015" |
| Ring Chamfer Inner Tolerance | 0" to 0.015" |
| Radial Internal Clearance | 0" to 0.001" |
| Static Radial Load | 9000 lbf |
| Static Thrust Load | 1300 lbf |
| Dynamic Radial Ring Inner Load | 7780 lbf |
| Dynamic Radial Ring Outer Load | 6860 lbf |
| Max Starting Torque | 6 oz-in |
| Weight | 0.53 lbs |
STANDARD EQUIVALENT
The LILY Bearing part number DSP10 represents the same bearing specification across different part numbering systems.
Part Number
DSP10
Standard Reference
MS27643-10
