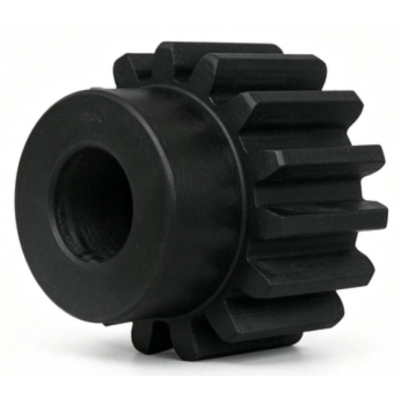

3598N291
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | DFJINCJB |
| System of Measurement | Metric |
| Gear Type | Helical |
| Component | Gear |
| Helical Gear Style | Crossed |
| Bore Type | Round |
| Module | 1 |
| Number Of Teeth | 13 |
| Helix Angle | 45 ° |
| Pressure Angle | 20 ° |
| Pitch Diameter | 18 mm |
| OD | 20.38 mm |
| Face Width | 10 mm |
| Overall Width | 20 mm |
| Bore Dia | 6 mm |
| Material | Black-Oxide 1045 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 15 mm |
| Hub Width | 10 mm |
| Tooth Direction | Right Hand |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of DFJINCJB Gear
DFJINCJB are designed to transmit motion between non-parallel, non-intersecting shafts—typically set at 90°. The 20° pressure angle provides stronger tooth engagement, enhancing load-carrying capacity and wear resistance compared to lower angles. Manufactured to metric standards, these spur gears ensure compatibility with international mechanical systems. DFJINCJB face width is 10 mm. Its overall width is 20 mm. Their crossed-axis configuration allows efficient torque transfer in compact or unconventional layouts, while precise machining ensures smooth, low-noise operation and consistent performance in moderate-load applications.
What Benefits Can DFJINCJB Gear Provide?
- Transmit motion smoothly between non-parallel, non-intersecting shafts, typically at 90° angles.
- 20° pressure angle offers stronger tooth engagement, improving load capacity and reducing wear.
- Provide compact and flexible design options for space-constrained or unconventional layouts.
- Ensure quiet and consistent operation, ideal for moderate-load applications.
- Metric sizing allows for easy integration with international machinery and components.
What Can DFJINCJB Gear Be Used for?
- Skewed Shaft Power Transmission: Used to transmit motion between shafts that are non-parallel and non-intersecting, often at 90°, where traditional gears cannot be applied.
- Compact Mechanical Systems: Ideal for devices with limited space that require directional changes in motion within a small footprint.
- Precision Instruments: Suitable for measuring equipment and fine mechanical systems needing smooth and accurate motion control.
- Automation and Robotics: Applied in automated machinery and robotic joints that require flexible shaft arrangements and reliable performance.
- Specialized Industrial Equipment: Used in custom machinery where standard spur gear configurations are not feasible due to design constraints.
