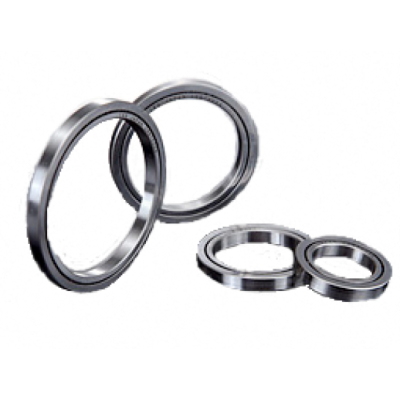

CRBT505A
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | CRBT505A |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Crossed |
| Seal Type | Open |
| Shaft Mount Type | Press Fit |
| For Load Direction | Combined |
| Construction | Single Row |
| ABEC Rating | ABEC5(Available in ABEC7/9) |
| Holes | Without Holes |
Dimensions |
|
| Bore Dia | 50 mm |
| Outer Dia | 61 mm |
| Width | 5 mm |
| Mounting Dimensions(da) | 52.5 mm |
| R(min) | 0.15 mm |
Material |
|
| Ring Material | Steel |
| Roller Material | Steel |
Performance |
|
| Basic Load Rating C | 2.28 kN |
| Basic Load Rating Co | 3.2 kN |
| Temperature Range | 0 -230 °F |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.0323 kg |
Design Features of CRBT505A Bearing
CRBT505A is designed with a thin profile and high rigidity, making it ideal for compact applications that require precise motion. CRBT505A outer dia is 61 mm. Its bore dia is 50 mm. Its crossed roller arrangement allows it to withstand radial, axial, and moment loads simultaneously, ensuring smooth and stable performance in limited spaces.
What Benefits Can CRBT505A Bearing Provide?
- Space-saving design: Its ultra-thin profile allows for compact installations, making it ideal for applications where space is limited.
- High load capacity: Despite its slim size, it can support radial, axial, and moment loads simultaneously, offering excellent stability.
- Smooth, precise movement: The crossed roller arrangement ensures minimal friction and high rotational accuracy, improving overall performance.
- High rigidity: Its design offers enhanced stiffness, making it suitable for applications that require precise positioning and stable motion control.
- Versatile applications: It is commonly used in robotics, medical devices, and precision equipment where both high performance and space optimization are critical.
What Can CRBT505A Bearing Be Used for?
- Robotics: It provides precise positioning and smooth motion in robotic arms and joints, where space is limited.
- Medical devices: Used in medical equipment like MRI machines and surgical robots, where both high accuracy and compact design are essential.
- Semiconductor manufacturing: Offers precise movement control in wafer-handling systems and inspection equipment.
- Optical and measurement instruments: Ensures stable and accurate rotation in devices such as cameras, telescopes, and measuring equipment.
- Aerospace and defense: Ideal for use in lightweight, high-performance systems such as satellite positioning mechanisms and precision targeting devices.
