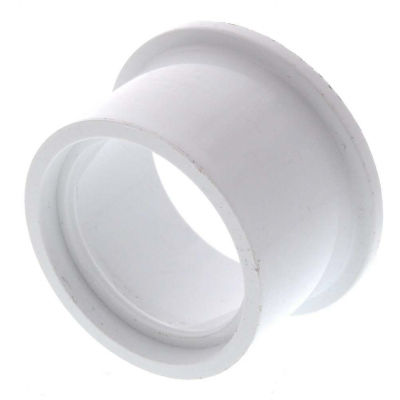

CHAFTBHB
| Part Number | CHAFTBHB |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Flanged |
| For Load Direction | Combined Radial and Thrust |
| For Shaft Diameter | 22mm |
| Bore Dia | 22 mm |
| Bore Dia Tolerance | 0.04 mm to 0.124 mm |
| For Housing ID | 25 mm |
| Outer Dia | 25 mm |
| Outer Dia Tolerance | 0 to 0.021 mm |
| Length | 8 mm |
| Length Tolerance | -0.22mm to 0mm |
| Flange OD | 32mm |
| Flange Thickness | 1.5mm |
| Dynamic Radial Load | 190 lbf |
| Static Radial Load | 190 lbf |
| Dynamic Thrust Load | 320 lbf |
| Max Speed (X1000 rpm) | 0.06 |
| Material | Thermoplastic Blend |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -50° to 190° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CHAFTBHB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHAFTBHB
