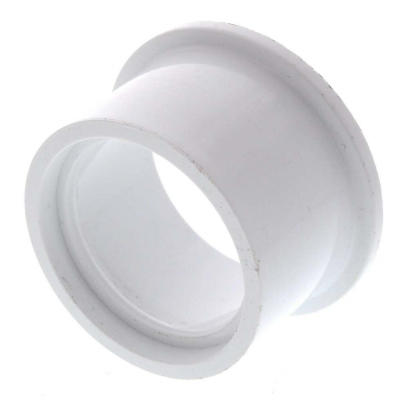

CHAFTBDG
| Part Number | CHAFTBDG |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Flanged |
| For Load Direction | Combined Radial and Thrust |
| For Shaft Diameter | 10 mm |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | 0.025 mm to 0.083 mm |
| For Housing ID | 12 mm |
| Outer Dia | 12 mm |
| Outer Dia Tolerance | 0 to 0.018 mm |
| Length | 3.5mm |
| Length Tolerance | -0.18mm to 0mm |
| Flange OD | 15 mm |
| Flange Thickness | 1mm |
| Dynamic Radial Load | 42 lbf |
| Static Radial Load | 42 lbf |
| Dynamic Thrust Load | 75 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | Thermoplastic Blend |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -50° to 190° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series CHAFTBDG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
CHAFTBDG
