BTW 130 CTN9/SP
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | BTW 130 CTN9/SP |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| Contact Angle | 60 ° |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Direction |
| Seal Type | Open |
| Bore Dia | 130 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 200 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 84 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Ceramic |
| Cage Material | Nylon |
| Dynamic Radial Load | 23830 lbf |
| Static Radial Load | 80932 lbf |
| Max Speed (X1000 rpm) | 4.3 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P4 (ABEC-7) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 7.6 kg |

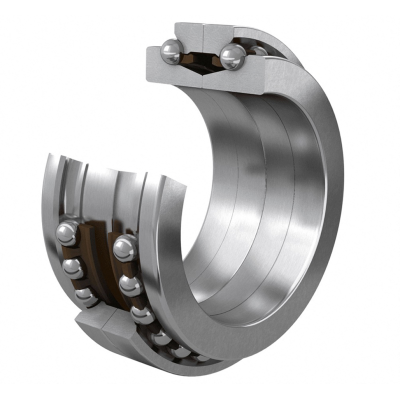

Design Features of BTW 130 CTN9/SP Bearing
BTW 130 CTN9/SP Bearing is constructed with a raceway, a single outer ring, two inner rings, and cages. BTW 130 CTN9/SP Bearing is known for its high-speed and high-precision. BTW 130 CTN9/SP bore dia is 130 mm. Its out dia is 200 mm. BTW 130 CTN9/SP width is 84 mm. It offers several key benefits and capabilities for a multitude of mechanical applications.
What Benefits Can BTW 130 CTN9/SP Bearing Provide?
- Bidirectional Load Handling: It is capable of handling significant axial loads in both directions, making it versatile for various applications.
- High Precision: The bearing is manufactured with tight tolerances for high accuracy and smooth operation.
- High Speed: It is suitable for high-speed applications due to its design and materials.
- Increased Stiffness and Rigidity: The robust design minimizes deformation under load, maintaining alignment and precision.
What Can BTW 130 CTN9/SP Bearing Be Used for?
BTW 130 CTN9/SP Bearing is suitable for a wide range of applications due to its high-precision and high-speed , such as:
- Machine Tool Spindles: It can provide the necessary precision and stability for the high-speed spindles in CNC milling and turning machines.
- Precision Instruments: It is used to support precise movement and measurement, essential for quality control and inspection tasks.
- Robotics and Automation: It provides the stiffness and accuracy required for the precise movements of robotic arms in manufacturing and assembly lines.
- High-Speed Pumps and Compressors: It can support high-speed rotation in pumps used for fluid transfer in industrial and commercial applications.
