BTM 180 AM/HCP4CDB
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | BTM 180 AM/HCP4CDB |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| Contact Angle | 30 ° |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Direction |
| Seal Type | Open |
| Bore Dia | 180 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 280 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 90 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Ceramic |
| Cage Material | PA66 cage |
| Dynamic Radial Load | 31473 lbf |
| Static Radial Load | 82056 lbf |
| Max Speed (X1000 rpm) | 5 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P4 (ABEC-7) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 20.1 kg |

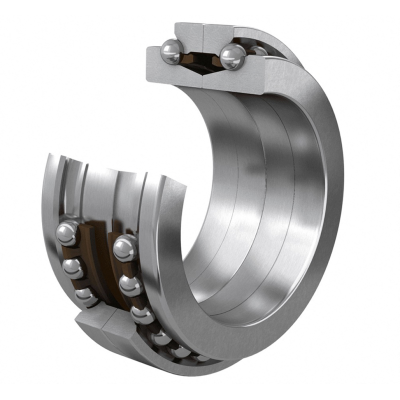

Design Features of BTM 180 AM/HCP4CDB Bearing
BTM 180 AM/HCP4CDB Bearing is constructed with a raceway, a single outer ring, two inner rings, and cages. BTM 180 AM/HCP4CDB Bearing is known for its high-speed and high-precision. BTM 180 AM/HCP4CDB bore dia is 180 mm. Its out dia is 280 mm. BTM 180 AM/HCP4CDB width is 90 mm. It offers several key benefits and capabilities for a multitude of mechanical applications.
What Benefits Can BTM 180 AM/HCP4CDB Bearing Provide?
- Bidirectional Load Handling: It is capable of handling significant axial loads in both directions, making it versatile for various applications.
- High Precision: The bearing is manufactured with tight tolerances for high accuracy and smooth operation.
- High Speed: It is suitable for high-speed applications due to its design and materials.
- Increased Stiffness and Rigidity: The robust design minimizes deformation under load, maintaining alignment and precision.
What Can BTM 180 AM/HCP4CDB Bearing Be Used for?
BTM 180 AM/HCP4CDB Bearing is suitable for a wide range of applications due to its high-precision and high-speed , such as:
- Machine Tool Spindles: It can provide the necessary precision and stability for the high-speed spindles in CNC milling and turning machines.
- Precision Instruments: It is used to support precise movement and measurement, essential for quality control and inspection tasks.
- Robotics and Automation: It provides the stiffness and accuracy required for the precise movements of robotic arms in manufacturing and assembly lines.
- High-Speed Pumps and Compressors: It can support high-speed rotation in pumps used for fluid transfer in industrial and commercial applications.
