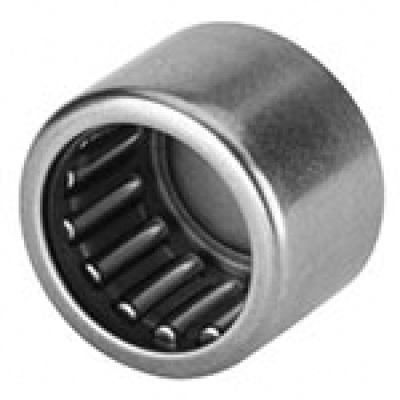

BK3016
| Part Number | BK3016 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Series | Closed End |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | +20°Cm-+41°Cm |
| Outer Dia | 37 mm |
| Outer Dia Tolerance | Not Rated |
| Width | 16 mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 3867 lbf |
| Static Radial Load | 6519 lbf |
| Max Speed (X1000 rpm) | 8.6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 38 g |
})
INTERCHANGE
The LILY bearing part series BK3016 is a potential replacement for these common bearing part numbers.
LILY
TORRINGTON
JTEKT
IKO
LBK3016
BK3016
BK3016
TLAM 3016
