BK1816

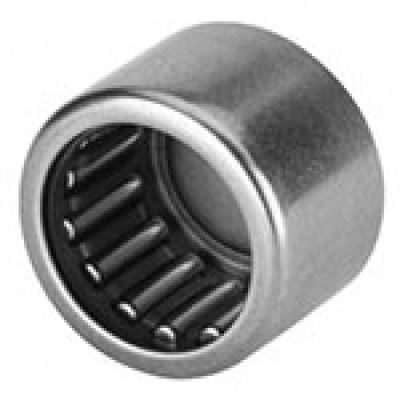

BK1816 Drawn Cup Needle Roller Bearings
Part Number BK1816
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Series Closed End
Bore Dia 18 mm
Bore Dia Tolerance +16-+34°Cm
Outer Dia 24 mm
Outer Dia Tolerance Not Rated
Width 16 mm
Width Tolerance -0.3mm to 0mm
Ring Material Steel
Ball Material Steel
Cage Material Steel
Dynamic Radial Load 2608 lbf
Static Radial Load 3889 lbf
Max Speed (X1000 rpm) 14
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 20 g
BK1816 Drawn Cup Needle Roller Bearings cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series BK1816 is a potential replacement for these common bearing part numbers.
LILY
TORRINGTON
JTEKT
IKO
LBK1816
BK1816
BK1816
TLAM 1816
