Product Categories
/
Roller Bearings
/
Needle Bearings
/
Drawn Cup Needle Roller Bearings
/

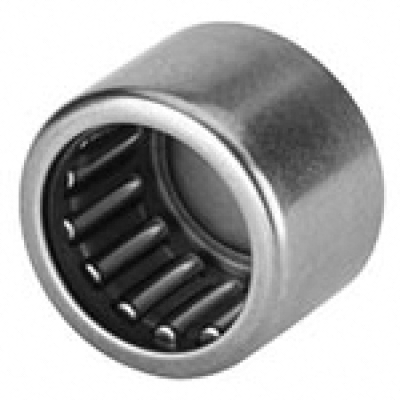

BK1514-RS
BK1514-RS
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | BK1514-RS |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle Roller |
| Seal Type | Single Seal |
| Shaft Mount Type | Press Fit |
| For Load Direction | Radial |
| Construction | Single Row |
| Series | Closed End |
Dimensions |
|
| Bore Dia | 15 mm |
| Bore Dia Tolerance | +0.016mm-+0.034mm |
| Outer Dia | 21 mm |
| Outer Dia Tolerance | Not Rated |
| Width | 14 mm |
| Width Tolerance | -0.3mm to 0mm |
Material |
|
| Ring Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Radial Load | 1754 lbf |
| Static Radial Load | 2203 lbf |
| Max Speed (X1000 rpm) | 9.9 |
| Temperature Range | -20 to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| Weight | 14 g |
