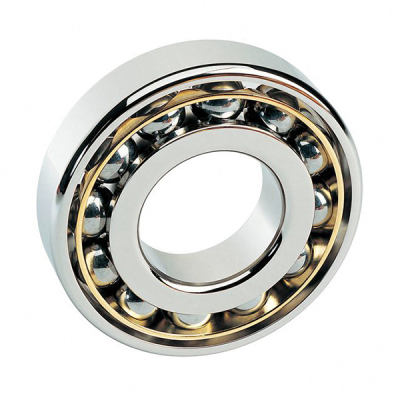

AMS 24 ABP
Part Number | AMS 24 ABP |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Metric |
Bearing Type | Ball |
Internal Design | High Speed |
Contact Angle | 30° |
For Load Direction | Angular Contact |
Construction | Single Row |
Seal Type | Open |
Bore Dia | 76.2 mm |
Bore Dia Tolerance | -0.012mm to 0 |
Outer Dia | 177.8 mm |
Outer Dia Tolerance | -0.018mm to 0 |
Width | 39.688 mm |
Width Tolerance | -0.05mm to 0 |
Shoulder Diameter Inner Ring (Large Side Face)(d1) | 107.8 mm |
Shoulder Diameter Inner Ring (Small Side Face)(d2) | 97 mm |
Shoulder Diameter Outer Ring (Large Side Face)(D1) | 142.15 mm |
Chamfer Dimension (r1 2)(min) | 4 mm |
Distance Pressure Point (a) | 43 mm |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | Nylon |
Dynamic Radial Load | 36675 lbf |
Static Radial Load | 30825 lbf |
Max Speed (X1000 rpm) | 5 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
ABEC Rating | P6 (ABEC-3) |
ROHS | Compliant |
REACH | Compliant |
Weight | 5.21 kg |
Design Features of AMS 24 ABP Bearing
AMS 24 ABP Bearing comprises a single row of balls, with raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. AMS 24 ABP bore dia is 76.2 mm. Its out dia is 177.8 mm. AMS 24 ABP width is 39.688 mm. Its design and functionality make it suitable for applications where reliable and efficient rotational motion is critical.
What Benefits Can AMS 24 ABP Bearing Provide?
- Unidirectional Axial Load Capacity: Specifically designed to handle axial loads in one direction along with radial loads, providing efficient performance in various applications.
- High-Speed Operation: Suitable for high-speed applications due to their design and ability to minimize friction.
- Angular Contact Design: The contact angle allows them to deal effectively with axial and radial loads, enhancing their load-bearing capacity.
- Precision and Rigidity: Offer high precision and rigidity, making them ideal for applications requiring accurate shaft rotation.
- Space-Saving: Their single row design makes them compact and space-efficient, suitable for applications with limited space.
What Can AMS 24 ABP Bearing Be Used for?
AMS 24 ABP Bearing is used in a variety of applications where handling combined axial and radial loads with high precision and speed is essential. Typical uses include:
- Automotive Systems: In components like clutches and steering columns.
- Industrial Machinery: In pumps, compressors, and gearboxes.
- Manufacturing Equipment: In conveyor belts and assembly lines.
- Aerospace Applications: In various aircraft systems requiring precise motion control.
- Precision Tools: In high-speed drilling and grinding machines.
