7084 AM
Part Number | 7084 AM |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Metric |
Bearing Type | Ball |
Internal Design | High Speed |
Contact Angle | 30° |
For Load Direction | Angular Contact |
Construction | Single Row |
Seal Type | Open |
Bore Dia | 420 mm |
Bore Dia Tolerance | -0.035mm to 0 |
Outer Dia | 620 mm |
Outer Dia Tolerance | -0.038mm to 0 |
Width | 90 mm |
Width Tolerance | -0.05mm to 0 |
Shoulder Diameter Inner Ring (Large Side Face)(d1) | 498.4 mm |
Shoulder Diameter Inner Ring (Small Side Face)(d2) | 463.16 mm |
Shoulder Diameter Outer Ring (Large Side Face)(D1) | 548 mm |
Chamfer Dimension (r1 2)(min) | 5 mm |
Distance Pressure Point (a) | 195 mm |
Ring Material | Chrome Steel |
Ball Material | Chrome Steel |
Cage Material | Brass |
Dynamic Radial Load | 136125 lbf |
Static Radial Load | 265500 lbf |
Max Speed (X1000 rpm) | 1.1 |
Lubrication | Lubricated |
Temperature Range | -30° to 110 °C |
ABEC Rating | P6 (ABEC-3) |
ROHS | Compliant |
REACH | Compliant |
Weight | 95 kg |

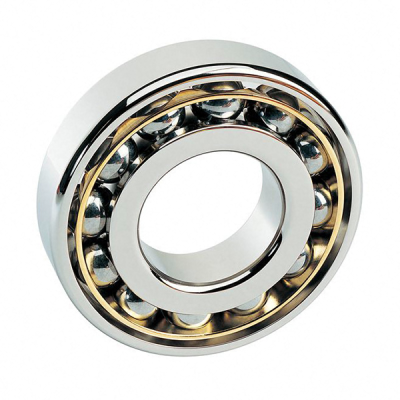

Design Features of 7084 AM Bearing
7084 AM Bearing comprises a single row of balls, with raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. 7084 AM bore dia is 420 mm. Its out dia is 620 mm. 7084 AM width is 90 mm. Its design and functionality make it suitable for applications where reliable and efficient rotational motion is critical.
What Benefits Can 7084 AM Bearing Provide?
- Unidirectional Axial Load Capacity: Specifically designed to handle axial loads in one direction along with radial loads, providing efficient performance in various applications.
- High-Speed Operation: Suitable for high-speed applications due to their design and ability to minimize friction.
- Angular Contact Design: The contact angle allows them to deal effectively with axial and radial loads, enhancing their load-bearing capacity.
- Precision and Rigidity: Offer high precision and rigidity, making them ideal for applications requiring accurate shaft rotation.
- Space-Saving: Their single row design makes them compact and space-efficient, suitable for applications with limited space.
What Can 7084 AM Bearing Be Used for?
7084 AM Bearing is used in a variety of applications where handling combined axial and radial loads with high precision and speed is essential. Typical uses include:
- Automotive Systems: In components like clutches and steering columns.
- Industrial Machinery: In pumps, compressors, and gearboxes.
- Manufacturing Equipment: In conveyor belts and assembly lines.
- Aerospace Applications: In various aircraft systems requiring precise motion control.
- Precision Tools: In high-speed drilling and grinding machines.
