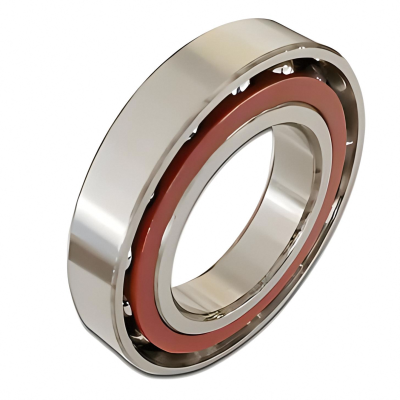

7009 ACDTP/P4B
7009 ACDTP/P4B
$304.69
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | 7009 ACDTP/P4B |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Seal Type | Open |
| For Load Direction | Angular Contact |
| Matched Arrangement | Available |
| Ball Qty | 17 |
| Tolerance Class | P4 (ABEC-7) |
Dimensions |
|
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.006mm to 0 |
| Outer Dia | 75 mm |
| Outer Dia Tolerance | -0.007mm to 0 |
| Width | 16 mm |
| Width Tolerance | -0.2mm to 0 |
| Contact Angle | 25 ° |
| Ball Dia | 9.525 mm |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Phenolic |
Performance |
|
| Dynamic Radial Load | 27.62 kN |
| Static Radial Load | 21.62 kN |
| Max Speed (X1000 rpm) | 17 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Lubricated |
| Preload | Available |
| Weight | 0.24 kg |
