Ball Bearings
/
Angular Contact Ball Bearings
/
Single Row Angular Contact Ball Bearings (General)
/

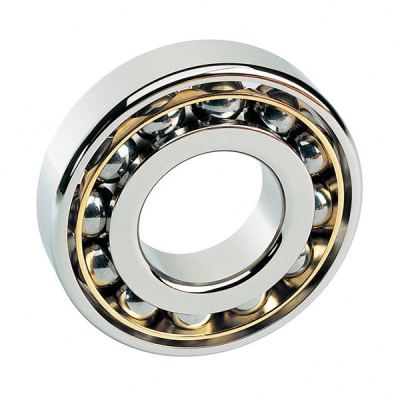

70/530 BM
70/530 BM
$4667.67
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
Overview |
|
| Part Number | 70/530 BM |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| For Load Direction | Angular Contact |
| Seal Type | Open |
Dimensions |
|
| Bore Dia | 530 mm |
| Outer Dia | 780 mm |
| Width | 112 mm |
| Contact Angle | 30 ° |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Brass |
Performance |
|
| Dynamic Radial Load | 741.63 kN |
| Static Radial Load | 1701.44 kN |
| Max Speed (X1000 rpm) | 0.8 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Lubricated |
| Tolerance Class | P6 (ABEC-3) |
| Weight | 180 kg |
