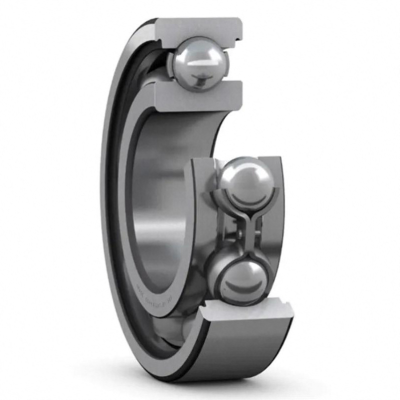

6212LLB
$19.55
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | 6212LLB |
Brand: LILY  |
Interchangeable With: NTN |
| System of Measurement | Metric |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 60 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 110 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 22 mm |
| Width Tolerance | -0.150mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Chrome Steel |
| Dynamic Radial Load | 1178 lbf |
| Static Radial Load | 8138 lbf |
| Max Speed (X1000 rpm) | 5.6 |
| Lubrication | None |
| Temperature Range | -30°to 120 °C |
| ABEC Rating | ABEC 1 | ISO P0 |
| Radial Internal Clearance | CN |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 762 g |
