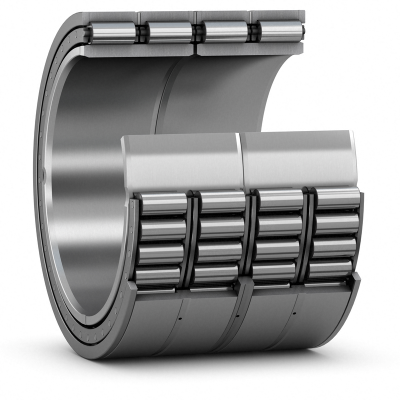

313685 B
| Part Number | 313685 B |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 759 mm |
| Outer Dia | 1210 mm |
| Corner Radius/Chamfer Inner Ring(r1,2)(min.) | 4 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min.) | 4 mm |
| Dynamic Radial Load | 5737500 lbf |
| Static Radial Load | 19125000 lbf |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
