29472 EM
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 29472 EM |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Spherical |
| Bearing Type | Roller |
| For Load Direction | Axial |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 360 mm |
| Bore Dia Tolerance | -0.04 to 0 |
| Outer Dia | 640 mm |
| Outer Dia Tolerance | -0.075 to 0 |
| Width | 170 mm |
| Height Tolerance | -0.175 to 0 |
| Outside Diameter(d1) | 580 mm |
| Shoulder Diameter Outer Ring (D1) | 474 mm |
| Height Shaft Washer Cage(B1) | 164 mm |
| Height Housing Washer(C) | 83.5 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 210 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 7.5 mm |
Material |
|
| Roller Material | Steel |
| Cage Material | Bronze |
Performance |
|
| Dynamic Thrust Load | 6200 kN |
| Static Thrust Load | 2120 kN |
| Max Speed (X1000 rpm) | 0.95 |
| Temperature Range | -30 to 100 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 230 kg |

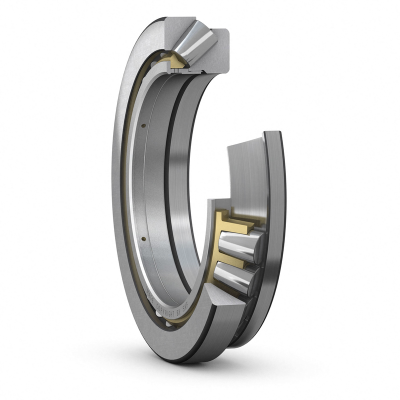

Design Features of 29472 EM Bearing
29472 EM Bearing features asymmetrical rollers arranged in a spherical profile, allowing it to accommodate both high axial and moderate radial loads while compensating for misalignment. 29472 EM outer dia is 640 mm. Its bore dia is 360 mm. Its robust design ensures excellent load capacity, durability, and smooth operation in applications subjected to heavy loads and shaft deflections.
What Benefits Can 29472 EM Bearing Provide?
- High load capacity: It can handle large axial loads and moderate radial loads, making it ideal for heavy-duty applications.
- Misalignment tolerance: Its spherical design allows it to compensate for shaft misalignment, reducing stress and improving the longevity of the bearing.
- Durability: Designed for heavy loads and harsh conditions, it offers excellent performance and reliability, even under challenging operating conditions.
- Smooth operation: The design reduces friction, ensuring efficient performance and minimizing wear, leading to lower maintenance costs.
What Can 29472 EM Bearing Be Used for?
- Hydraulic turbines: It supports high axial loads while accommodating misalignments in large, high-performance turbines.
- Gearboxes: In heavy industrial machinery, it ensures smooth operation under heavy loads and compensates for shaft deflections.
- Marine propulsion systems: It withstands the high axial forces and harsh conditions in ship propulsion systems.
- Cranes and lifting equipment: It handles the significant axial loads encountered in lifting and hoisting operations.
- Metalworking machinery: In equipment like rolling mills, it ensures durability and smooth performance under extreme pressures.
