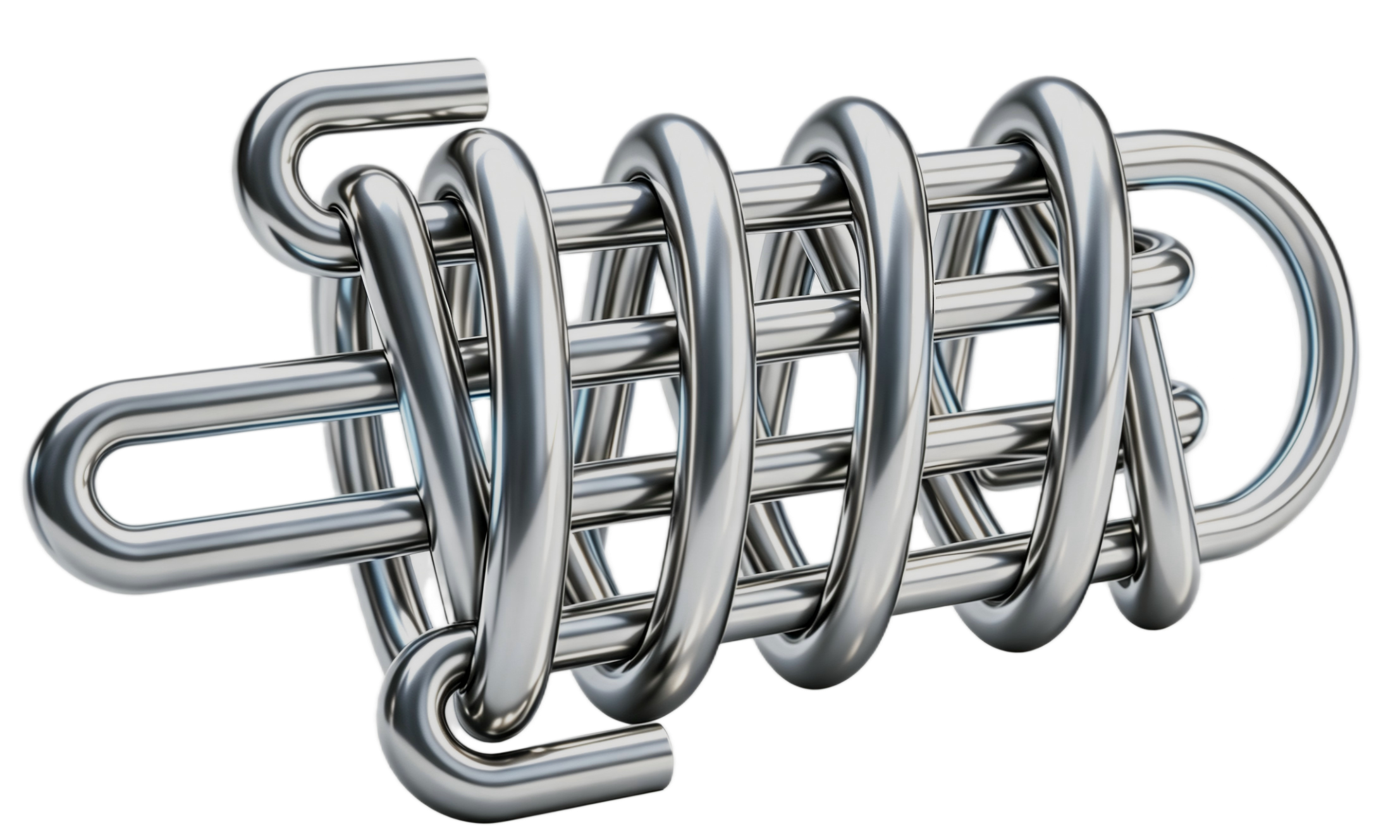

Overload-Prevention Extension Springs
15 Products
Overload-Prevention Extension Springs
Part Number
OD
Length
Wire Dia.
Extended Lg.@ Max. Load
Load Max.
Spring Rate
Material
End Type
Price
>
Part Number
OD
Length
Wire Dia.
Extended Lg.@ Max. Load
Load Max.
Spring Rate
Material
End Type
Price
>
JGDAKBE
1.746"
8.5"
0.148"
12.5"
54.08
13.52 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$12.22
JGDAKD
1.875"
8.5"
1/4"
10.35"
222
109.6 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$17.25
JGDAKDF
1.87"
16"
0.135"
21"
38.09
7.62 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$17.82
JGDAKE
1.1"
6"
1/8"
7.9"
55.1
29 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$7.75
JGDAKH
2.1"
7.875"
1/4"
10.625"
180.65
65.69 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$19.62
JGDAKDB
1.625"
13.75"
1/4"
15.4"
247.5
150 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$28.80
JGDAKF
1.192"
6"
0.092"
9"
12.62
4.21 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$9.13
JGDAKI
1.162"
6"
0.072"
10"
11.1
2.77 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$6.67
JGDAKJB
1.125"
7"
0.112"
8.9"
95
50 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$9.62
JGDAKDD
2.462"
13.75"
0.312"
17.15"
313.81
92.3 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$20.33
JGDAKJ
2.1"
8"
0.312"
9.85"
332.72
179.85 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$18.41
JGDAKJD
1.375"
7.5"
0.148"
9.6"
160
75 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$12.49
JGDAKB
0.875"
7.5"
0.105"
9.85"
42.3
18 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$9.59
JGDAKC
1.375"
8.75"
0.207"
9.95"
174
145 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$14.05
JGDAKG
0.675"
4"
0.048"
6.2"
5.01
2.28 lbf/in
Zinc-Plated Spring-Tempered Steel
Loop
$4.78
