High-Speed Linear Sleeve Bearings
14 Products

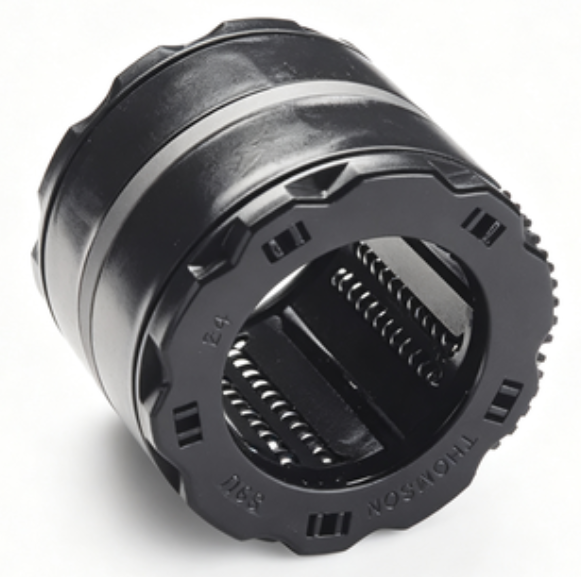

High-Speed Linear Sleeve Bearings
A ceramic liner makes high speeds as well as rapid acceleration and deceleration possible.
Part Number
Bore Dia
Outer Dia
Overall
Length
Length
Retaining Ring Groove
End-to End Lg.
End-to End Lg.
With End
Seals
Seals
Dynamic Radial
Load
Load
Static Radial
Load
Load
Temperature
Range
Range
GGHDKBB
0.25"
1/2"
3/4"
0.517"
No
70 lbs @ 100 fpm
935 lbs
-200° to 400° F
GGHDKBC
0.375"
5/8"
7/8"
0.642"
No
100 lbs @ 100 fpm
1600 lbs
-200° to 400° F
GGHDKBD
0.5"
7/8"
1 1/4"
0.969"
No
250 lbs @ 100 fpm
3100 lbs
-200° to 400° F
GGHDKBE
0.625"
1 1/8"
1 1/2"
1.116"
No
350 lbs @ 100 fpm
4600 lbs
-200° to 400° F
GGHDKBF
0.75"
1 1/4"
1 5/8"
1.178"
No
450 lbs @ 100 fpm
6100 lbs
-200° to 400° F
GGHDKDF
1.001"
1 1/4"
1 5/8"
1.178"
No
600 lbs @ 100 fpm
8100 lbs
-200° to 400° F
GGHDKDG
5 mm
12 mm
22 mm
12 mm
No
60 lbs @ 100 fpm
910 lbs
-200° to 400° F
GGHDKDH
8 mm
16 mm
25 mm
14mm
No
100 lbs @ 100 fpm
1550 lbs
-200° to 400° F
GGHDKDI
12 mm
22 mm
32 mm
20 mm
No
150 lbs @ 100 fpm
2950 lbs
-200° to 400° F
GGHDKDJ
16 mm
26 mm
36 mm
22mm
No
200 lbs @ 100 fpm
4450 lbs
-200° to 400° F
GGHDKEB
20 mm
32 mm
45 mm
28mm
No
300 lbs @ 100 fpm
6950 lbs
-200° to 400° F
GGHDKEC
25 mm
40 mm
58 mm
40 mm
No
500 lbs @ 100 fpm
11250 lbs
-200° to 400° F
GGHDKED
30 mm
47 mm
68 mm
48mm
No
900 lbs @ 100 fpm
15800 lbs
-200° to 400° F
GGHDKEF
50 mm
75 mm
100 mm
72mm
No
2000 lbs @ 100 fpm
38750 lbs
-200° to 400° F
